Specifications
- AIMS SKU A0121314
- Brand Seco
- Model Number 74027631
- Barcode Number 27631740001001
- Designation 16ER11.5NPT,H15

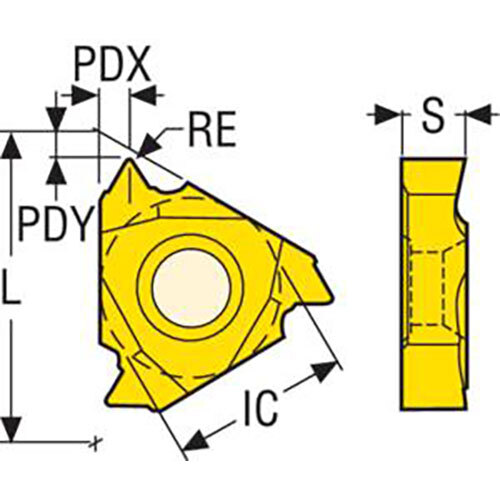

- Profile Distance Ex (PDX) mm 1.5
- Threads Per Inch Minimum (TPIN) 11.5
- Theoretical Cutting Edge Length (L) mm 16.5
- Corner Radius (RE) mm 0.07
- Cutting Edge Count (CEDC) 3
- Profile Included Angle (PNA) deg 60.0 deg
- Tooth Count (NT) 1
- Thread Type (TTP) External
- Inscribed Circle Diameter (IC) mm 9.53
- Insert Thickness (S) mm 3.47
- Profile Distance Ey (PDY) mm 1.1
- Threads Per Inch Maximum (TPIX) 11.5
- Insert Seat Size Code (SSC) 16
- Insert Hand (IH) Right
- Type Snap-Tap® Thread Turning Insert
- Thread Type (TTP) External
- Grade H15
SKU: A0121314

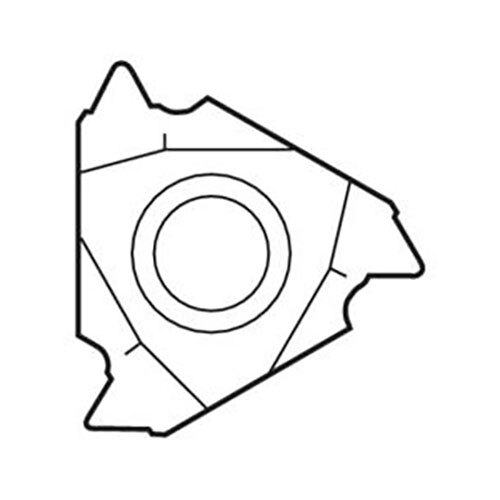

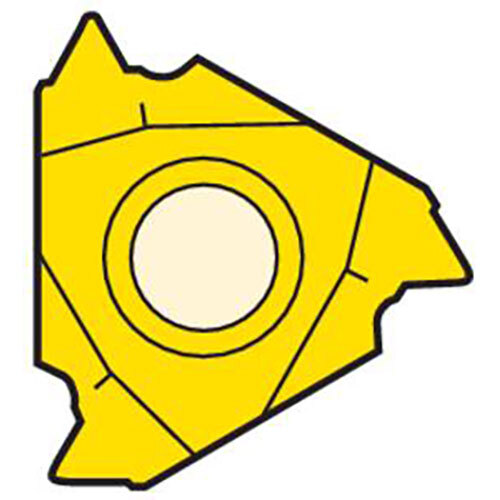

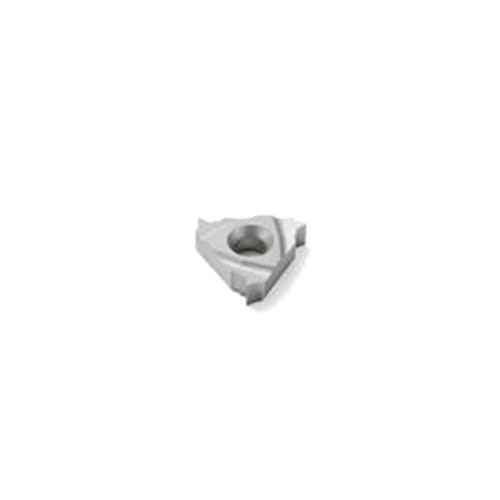

Seco External Snap-Tap Thread Turning Insert 3.47 x 16.5mm Right 11.5-11.5 TPI H15 NPT Thread 16ER11.5NPT,H15 Pack of 10
Thread Turning Insert 16ER - Am. NPT Thread Grade-H15
$393.72
