Specifications
- AIMS SKU A0120941
- Brand Seco
- Model Number 00049802
- Barcode Number 49802000000207
- Designation 16ER12ACME,CP500

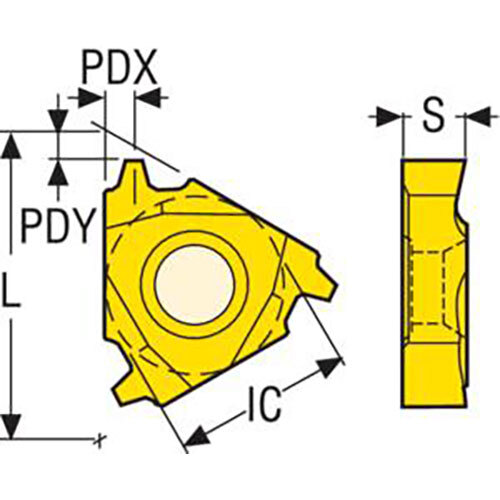

- Profile Distance Ey (PDY) mm 1.3
- Threads Per Inch Maximum (TPIX) 12
- Insert Seat Size Code (SSC) 16
- Cutting Edge Count (CEDC) 3
- Thread Tolerance Class (TCTR) 3G
- Profile Distance Ex (PDX) mm 1.5
- Threads Per Inch Minimum (TPIN) 12
- Theoretical Cutting Edge Length (L) mm 16.5
- Insert Thickness (S) mm 3.47
- Profile Included Angle (PNA) deg 29.0 deg
- Tooth Count (NT) 1
- Thread Type (TTP) External
- Inscribed Circle Diameter (IC) mm 9.53
- Insert Hand (IH) Right

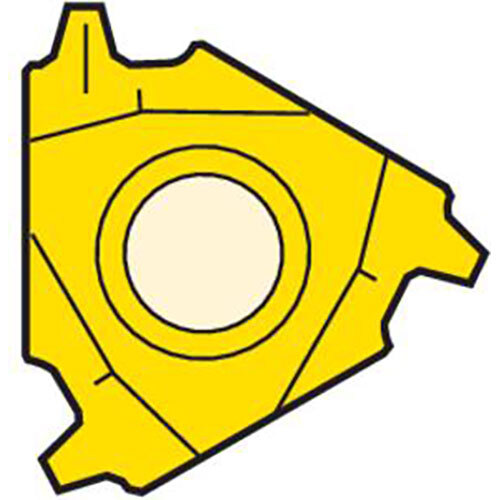

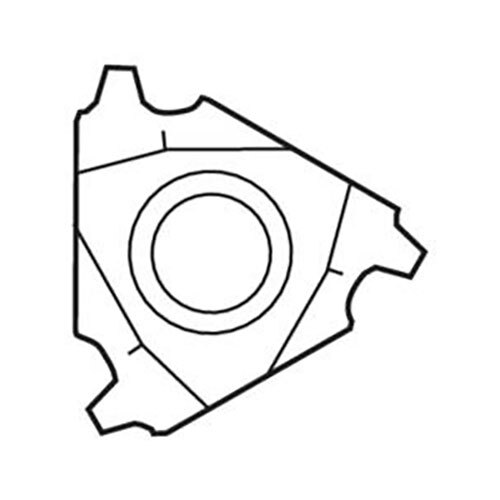

- Type Snap-Tap® Thread Turning Insert
- Thread Type (TTP) External
- Grade CP500
SKU: A0120941

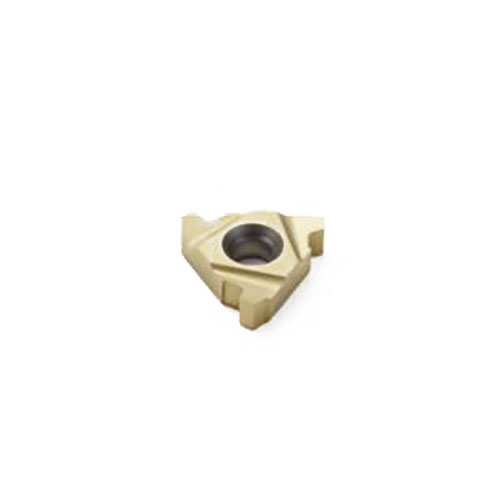

Seco External Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Right 12-12 TPI CP500 ACME Thread 16ER12ACME,CP500 Pack of 2
Thread Turning Insert 16ER - Am. ACME-G Thread Grade-CP5
$103.92
