Description

TechTop’s TAIB aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

TAIB braked motors are fitted with Intorq brand direct current brakes and are “fail to safe” design, as the brake will engage when the power is disconnected.

All TechTop TAIB series electric motors are fitted with an emergency hand release.

As standard, TechTop’s TAI series are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0098959
  • Brand TechTop
  • Model Number TA4B0119TAIBHR
  • Poles 4
  • IEC Frame Size 90 S
  • Mounting Position B14B
  • Base RPM 1420
  • Shaft Diameter 24 mm
  • Mounting Type Flange-Mounted
  • Group Code Techtop-TAIB-1.1kw
  • Type Three Phase with Brake
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 1.1
  • Rated Load (HP) 1 1/2
  • Current Type AC
  • AC Phase Three Phase
  • Series Techtop TAIB
SKU: A0098959

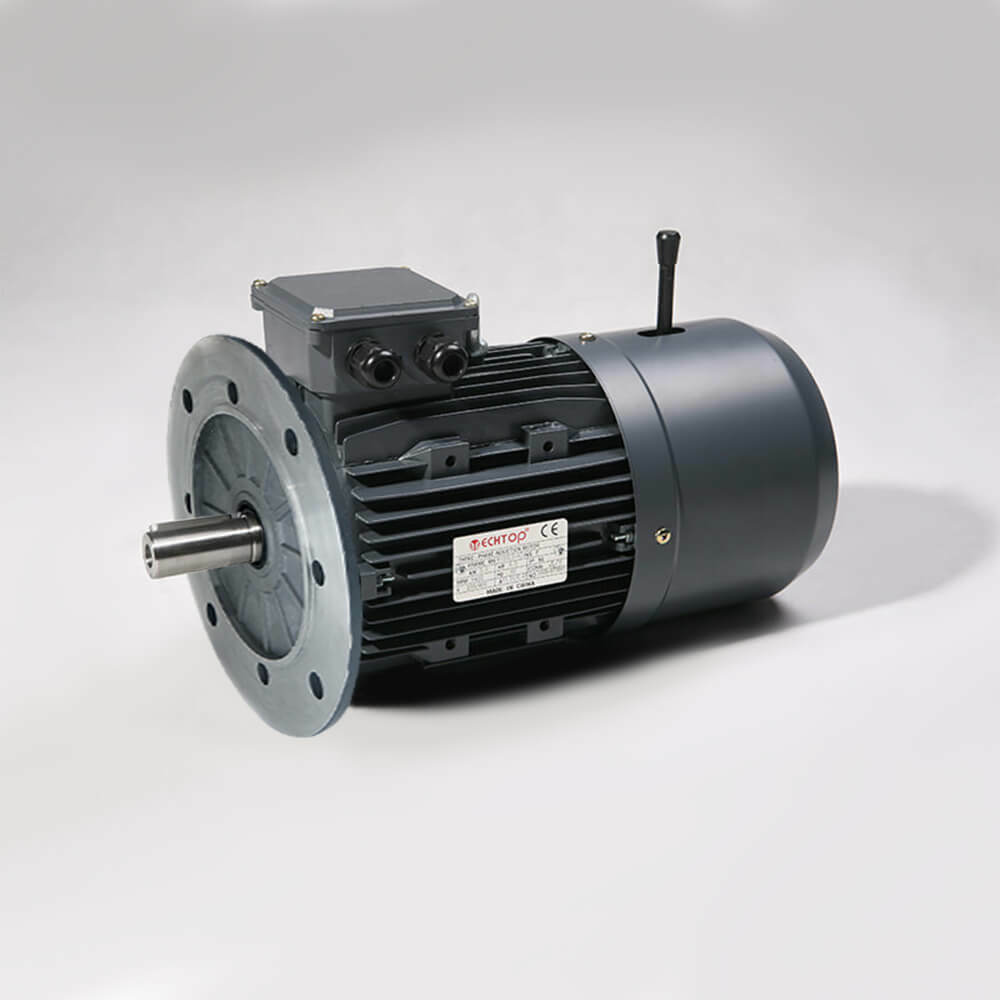

TechTop 1.1kW 1 1/2 HP Motor 415V 3 Phase 4 Pole, 1420 RPM, Flange Mount TA4B0119TAIBHR

415V Three Phase Aluminium Brake Motor (TA4B0119TAIBHR)

$1,213.61
