Description

**Lead time is approximately 1 week on 6-Pole, B3-B14B Mounting Position and Foot/Flange Mounting type. **

TechTop’s TMY series AC induction motors are ideally suited for fan and pump applications where performance and low weight are key factors

The multi-mount design of TechTop’s TMY series electric motor allows for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0097752
  • Brand TechTop
  • Model Number TA2A0753TMY
  • Poles 2
  • IEC Frame Size 80 A
  • Mounting Position B3
  • Base RPM 2810
  • Shaft Diameter 19 mm
  • Mounting Type Foot-Mounted
  • Group Code Techtop-TMY-0.75kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 0.75
  • Rated Load (HP) 1
  • Current Type AC
  • AC Phase Single Phase
  • Series Techtop TMY
SKU: A0097752

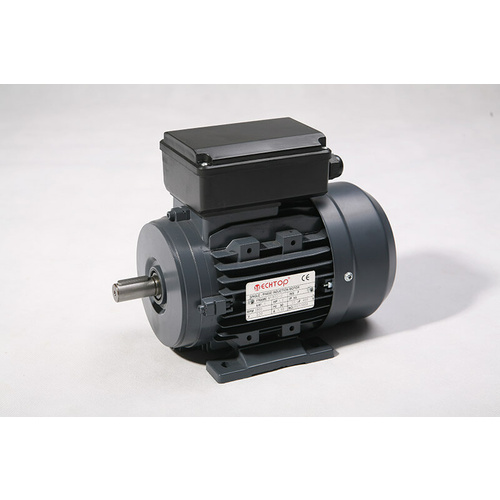

TechTop 0.75kW 1 HP Motor 240V 1 Phase 2 Pole, 2810 RPM, Foot Mount TA2A0753TMY

240V Permanent Split Capacitor Motor (TA2A0753TMY)

$284.92
