Description

TechTop’s TMY series AC induction motors are ideally suited for fan and pump applications where performance and low weight are key factors

The multi-mount design of TechTop’s TMY series electric motor allows for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0097827
  • Brand TechTop
  • Model Number TA2A0096TMY
  • Poles 2
  • IEC Frame Size 56 A
  • Mounting Position B3,B14A
  • Base RPM 2760
  • Shaft Diameter 9 mm
  • Mounting Type Foot & Flange Mounted
  • Group Code Techtop-TMY-0.09kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 0.09
  • Rated Load (HP) 0.12
  • Current Type AC
  • AC Phase Single Phase
  • Series Techtop TMY
SKU: A0097827

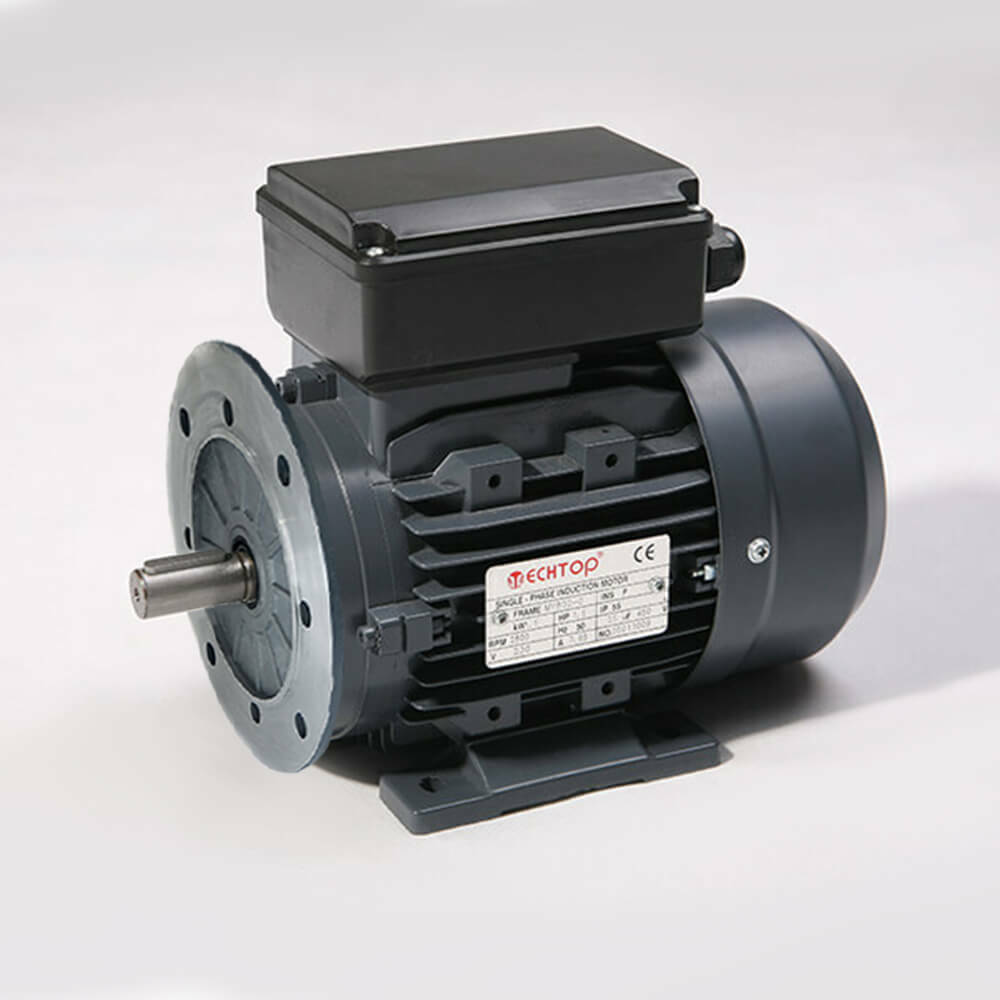

TechTop 0.09kW 0.12 HP Motor 1 Phase 2 Pole, 2760 RPM, Foot & Flange TA2A0096TMY

240V Permanent Split Capacitor Motor (TA2A0096TMY)

$146.07

Choose a different size/variant

Calculate Shipping

Browse other products under

240V Single Phase Motors

Browse other products by

TechTop
