Description

SY ASA Roller Chain Heavy Series Duplex

  • Sugiyama Chain Manufacturing Co. is the only company in the world that supplies all of its standard chains with solid bushings and solid rollers.
  • This gives SY Chain a longer service life & a higher allowable maximum load.

Features

  • +30% Higher Fatigue Strength
    - Higher safety factor is gained
    - Downsizing to the smaller chain is possible in some applications
    - Cost Savings
  • The longest chain life
    - Significantly longer wear
    - Up to 2-3 times longer wear life over curled bushings
    - Reliable performance

All About Heavy Roller Chain (H)

  • SY H-series roller chains are provided with greater shock and wear resistance and high breaking strength for general purposes applications.
  • The side plate thickness is equal to the next larger ANSI roller chains and through-hardened tensile structural steel pins realize strong power transmission in limited equipment space, showing shock absorption and fatigue strength and his ultimate strength as much as 110 - 120 percent.
  • The single roller of "H" series runs on standard single roller chain sprockets.

Specifications

  • AIMS SKU A0158142
  • Brand SY Chain
  • Model Number 100H-2/SY
  • Chain Number 100H
  • Plate Height H (mm) 29.3
  • Pin Length LC (mm) 85
  • Roller Width W (mm) 19.05
  • Chain Pitch 1-1/4 in
  • Average Chain Weight kg/m (mm) 8.2
  • Pin Length L2 (mm) 44.2
  • Pin Length LR (mm) 81.6
  • Pin Diameter d (mm) 9.53
  • Maximum Allowable Load (kN) 39.1
  • Type of Connector Link C
  • Plate Thickness T (mm) 4.8
  • Pin Length L1 (mm) 40.8
  • Roller Diameter R (mm) 19.05
  • Pitch P (mm) 31.75
  • Average Tensile Strength (kN) 274
  • Trans.Pitch TP (mm) 39.1
  • Type Roller Chain
  • System of Measurement American (ASA)
  • Strand Duplex
SKU: A0158142

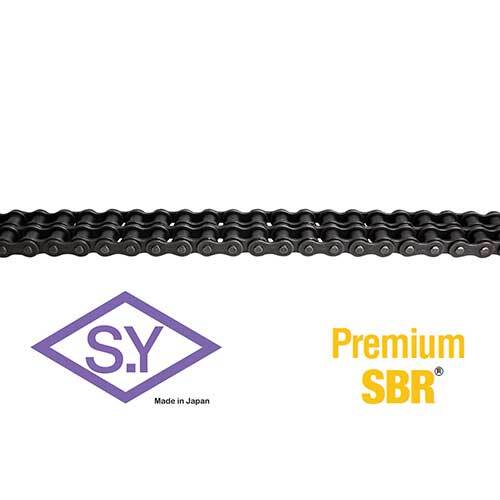

SY 100H-2 ASA Roller Chain Heavy Duplex 1-1/4" Pitch - Box of 10 Foot

SY ASA Roller Chain Heavy Series Duplex

$1,185.35
