Specifications

AIMS SKU A0014942
Brand Sutton Tools
Model Number T3960800
Barcode Number 9311963357881
Shank (mm) 8
L1 (mm) 72
L2 (mm) 13
L3 (mm) 30
z 3
Diameter (metric) M8
Drill Size (mm) 6.8
L4 (mm) 9
Sq 6.3
• Group Code T396
• System of Measurement ISO529
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Steam Oxide (Blue)
• Lead Form C / 3 x P
• Helix Angle R40
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 2.5xD

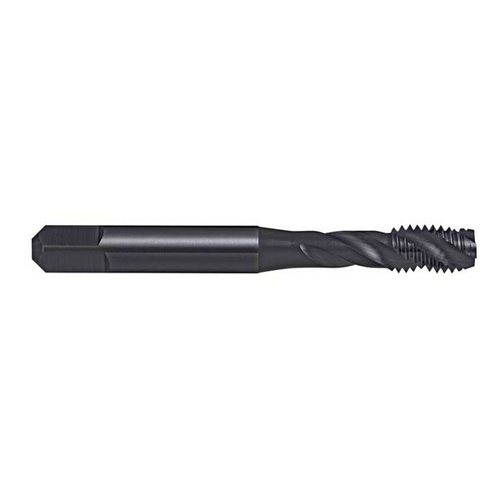

• Tap Type Spiral Flute
• Nut Tolerance ISO 2 / 6H
