Specifications

AIMS SKU A0014941
Brand Sutton Tools
Model Number T3960600
Barcode Number 9311963357874

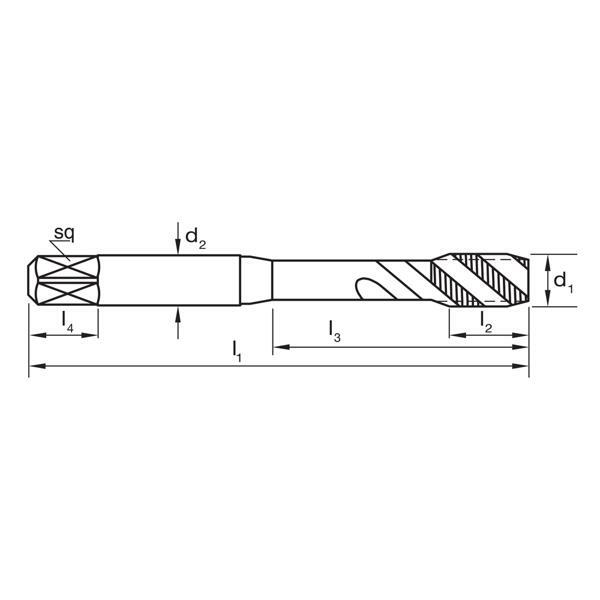

Shank (mm) 6.3
L1 (mm) 66
L2 (mm) 10
L3 (mm) 26
z 3
Diameter (metric) M6
Drill Size (mm) 5
L4 (mm) 8
Sq 5
• Group Code T396
• System of Measurement ISO529
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Steam Oxide (Blue)
• Lead Form C / 3 x P
• Helix Angle R40
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 2.5xD
• Tap Type Spiral Flute
• Nut Tolerance ISO 2 / 6H
