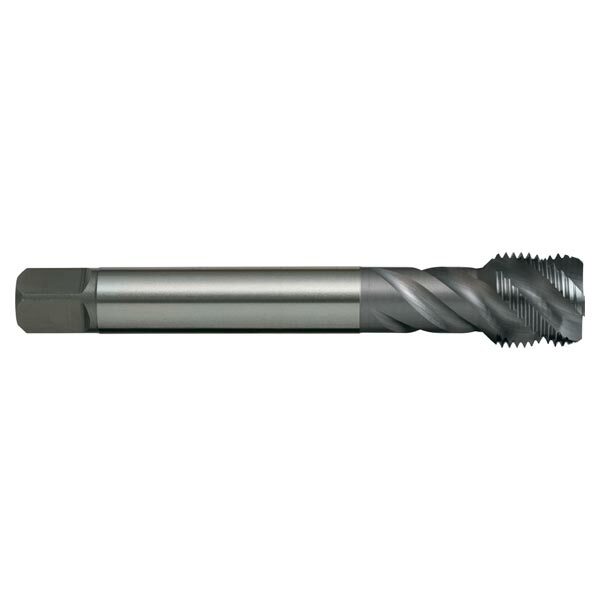

Sutton T3522644 BSPF G 3/4 x 14 Spiral Flute Tap R50 VAPM HSSE V3 TiCN - Sutton Tools

Description

Features

Use in stainless steels and high strength steels up to 1000N/mm2
PM-HSSE V3 offers higher edge hardness than standard VA series
Blind holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R50
X: als
Type: Spiral Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed
High temperature alloys - Ni / Co based: Annealed

Specifications

AIMS SKU A0014610

Brand Sutton Tools

Model Number T3522644

Barcode Number 9311963439686

TPI 14

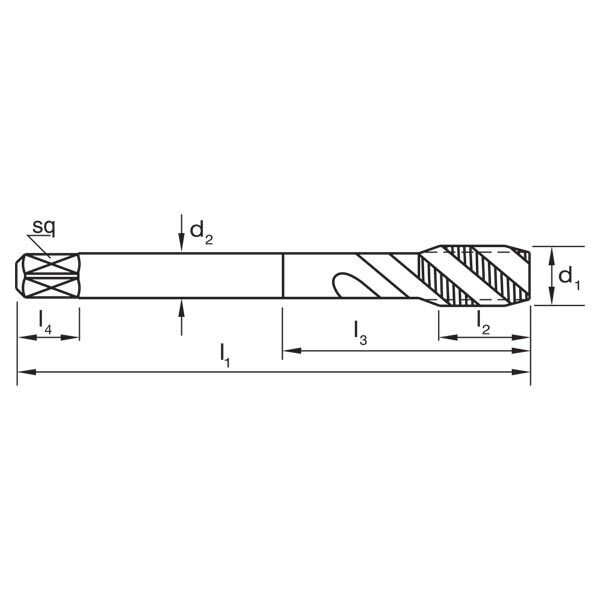

Shank (mm) 20

L1 (mm) 140

Diameter G3/4

L2 (mm) 28

z 5

Drill Size (mm) 24.5

L4 (mm) 19

Square Size (mm) 16

Group Code T352
System of Measurement DIN5156
Thread Form ISO G Parallel Series 55° (G-BSPF)
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Helix Angle R50
Application VA (for stainless and tough steels)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Flute
Nut Tolerance ISO 228
