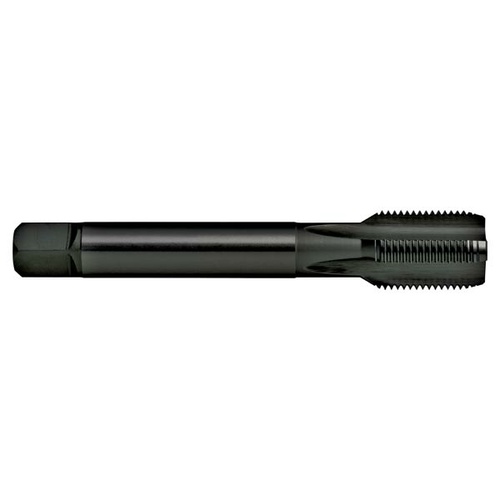

Sutton T3063325 G-BSPF G 1 x 11 Straight Flute Tap - HSSE V3 Ni/Blue - Sutton Tools

Description

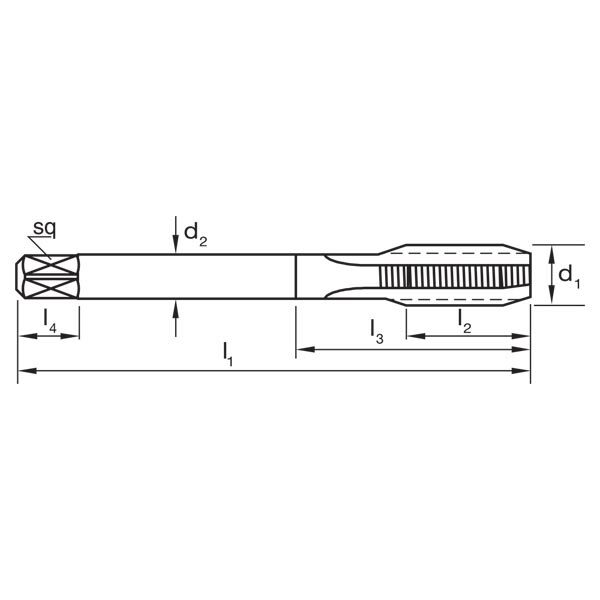

Dimensions

d1: G 1
d2 (mm): 25
l1 (mm): 160
l2 (mm): 30
l4 (mm): 23
Square Size (mm): 20
z: 6
Drill Size (mm): 31 (drill)
TPI: 11 (TPI)

Features

Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of 850 N/mm
Through & blind holes
Suitable for machine operations
Depths up to approx. 1 x d1

Specifications

Designation: GG (for cast iron)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Plasma Nitride (Ni) + Steam Oxide (Blue)
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) - Pearlitic

Specifications

AIMS SKU A0014393

Brand Sutton Tools

Model Number T3063325

Barcode Number 9311963406589

TPI 11

Shank (mm) 25

L1 (mm) 160

Diameter G1

L2 (mm) 30

z 6

Drill Size (mm) 31

L4 (mm) 23

Square Size (mm) 20

Group Code T3063325
Barcode 9311963406589
TPI 11
Shank (mm) 25
L1 (mm) 160
Diameter G1
L2 (mm) 30
z 6
Drill Size (mm) 31
L4 (mm) 23
Square Size (mm) 20
Group Code T3063325
Barcode 9311963406589
TPI 11
Shank (mm) 25
L1 (mm) 160
Diameter G1
L2 (mm) 30
z 6
Drill Size (mm) 31
L4 (mm) 23
Square Size (mm) 20
