Specifications

AIMS SKU A0013901
Brand Sutton Tools
Model Number T2491205
Barcode Number 9311963520919
Pitch (mm) 1
Diameter (metric) MF12
• Group Code T249
• System of Measurement DIN374
• Thread Form ISO Metric Fine (MF)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Steam Oxide (Blue)
• Lead Form C / 3 x P
• Helix Angle R45
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 3xD

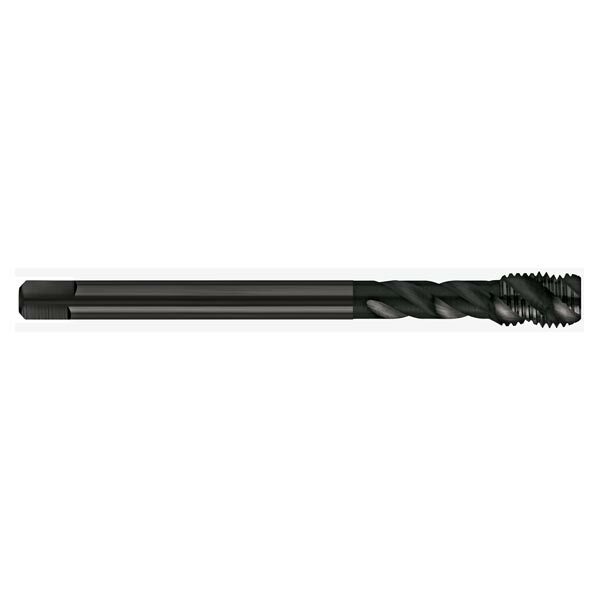

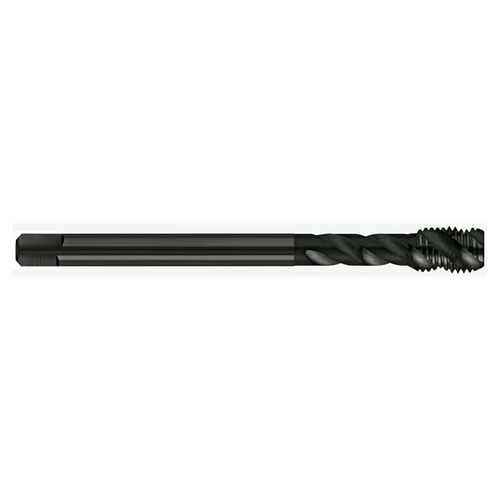

• Tap Type Spiral Flute Tap
• Nut Tolerance ISO 2 / 6H
