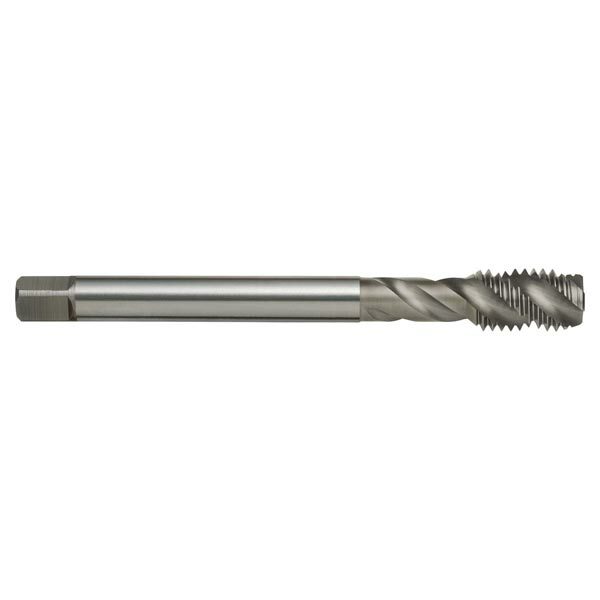

Sutton T2362000 Metric M20 x 2.5 Spiral Flute Tap - R45 W - HSSE V3 Ni - Sutton Tools

Description

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Plasma Nitride (Ni)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable

Specifications

AIMS SKU A0013762

Brand Sutton Tools

Model Number T2362000

Barcode Number 9311963393094

Shank (mm) 16

L1 (mm) 140

Pitch (mm) 2.5

L2 (mm) 25

z 4

Diameter (metric) M20

Drill Size (mm) 17.5

L4 (mm) 15

Square Size (mm) 12

Group Code T236
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Plasma Nitride (Ni)
Lead Form C / 3 x P
Helix Angle R45
Application W (for soft materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
