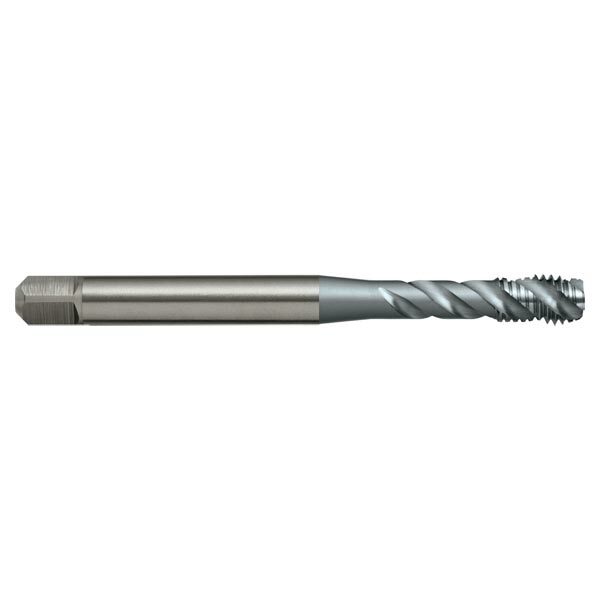

Sutton T2010300 M3 x 0.5 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN - Sutton Tools

Description

Features

Suitable for controlled tapping in deep holes
Use in stainless steels and high strength steels up to 850N/mm2
Blind holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Specifications

AIMS SKU A0013586

Brand Sutton Tools

Model Number T2010300

Barcode Number 9311963383361

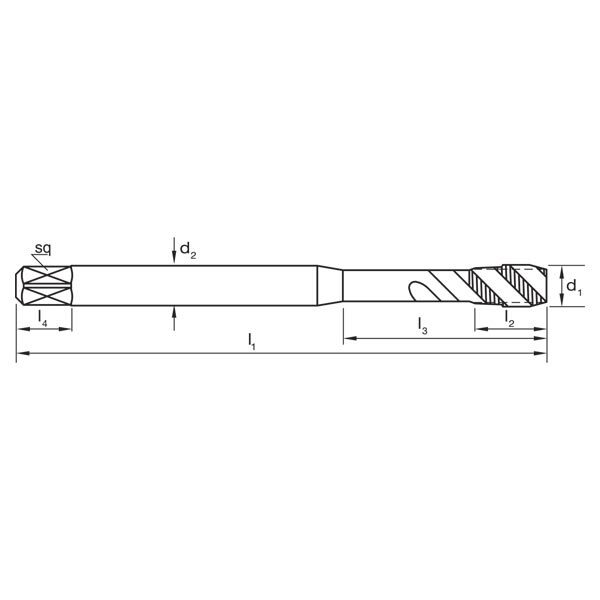

Shank (mm) 3.5

L1 (mm) 56

L2 (mm) 5

L3 (mm) 18

z 3

Diameter (metric) M3

Drill Size (mm) 2.5

L4 (mm) 6

Square Size (mm) 2.7

Group Code T201
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Helix Angle R45
Application VA (for stainless and tough steels)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
