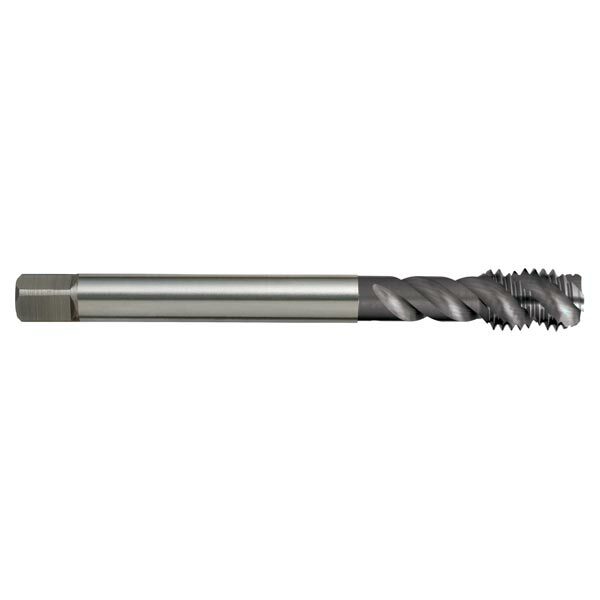

Specifications

AIMS SKU A0015934
Brand Sutton Tools
Model Number T6851200
Barcode Number 9311963513454
Shank (mm) 9
L1 (mm) 110
Pitch (mm) 1.75
Drill Size (mm) 10.2
L2 (mm) 17.5
Square Size (mm) 7
Diameter (metric) M12
L4 (mm) 10
z 3
• Group Code T685
• Thread Form ISO Metric Coarse (M)
• System of Measurement DIN376
• Material Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish Hardlube
• Lead Form C / 3 x P
• Helix Angle R50
• Application UNI (for normal general purpose type materials)
• Tap Type Spiral Flute
• Shank Form Reduced Shank (with square drive)
• Nut Tolerance 6HX
• Max Cut Depth 3xD
