Description

Features

  • General Purpose use for materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO2284
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: Z3
  • Lead: Intermediate

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

  • AIMS SKU A0015769
  • Brand Sutton Tools
  • Model Number T4800973
  • Barcode Number 9311963108100
  • TPI 28

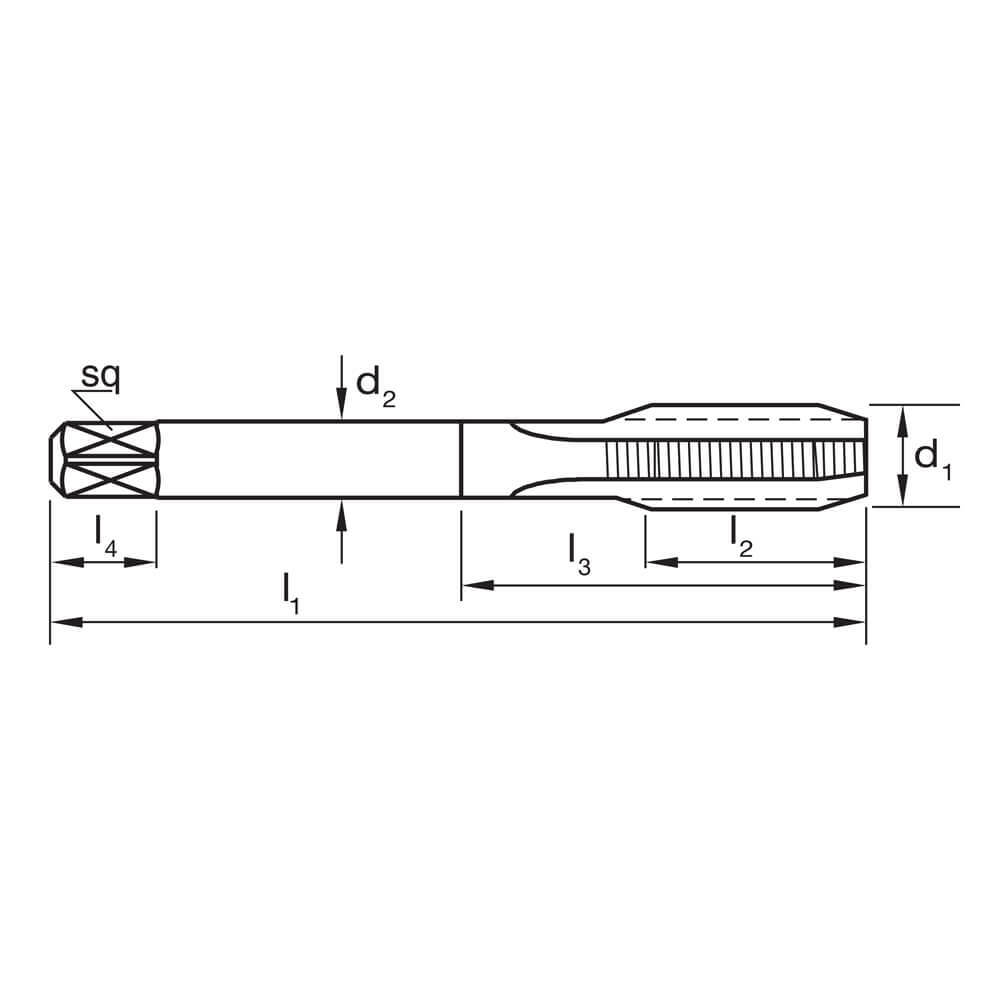

  • Shank (mm) 8
  • L1 (mm) 59
  • Diameter G1/8
  • Drill Size (mm) 8.8
  • L2 (mm) 15
  • Sq 6.3
  • z 4
  • L4 (mm) 9
  • Group Code T480
  • System of Measurement ISO2284
  • Thread Form ISO G Parallel Series 55° (G-BSPF)
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Lead Intermediate
  • Application N (for normal general purpose type materials)
  • Nut Tolerance Z3
  • Max Cut Depth 1xD
  • Tap Type Straight Flute
  • Shank Form Reduced Shank (with square drive)
SKU: A0015769

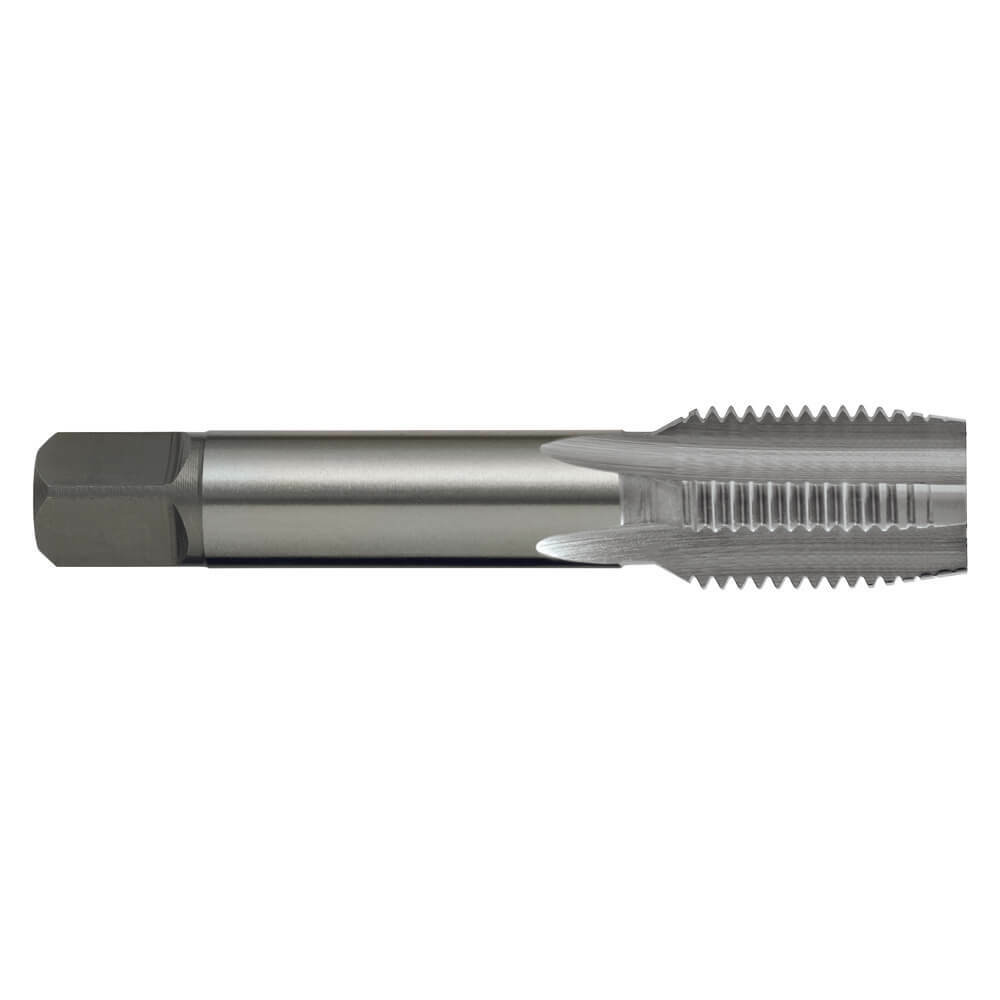

Sutton T4800973 G-BSPF G 1/8 x 28 Straight Flute Tap - Intermediate - HSS

Suttons Straight Flute Taps - G (BSPF) - Intermediate

$34.63
RRP $51.47
SAVE $16.84 (33%)
