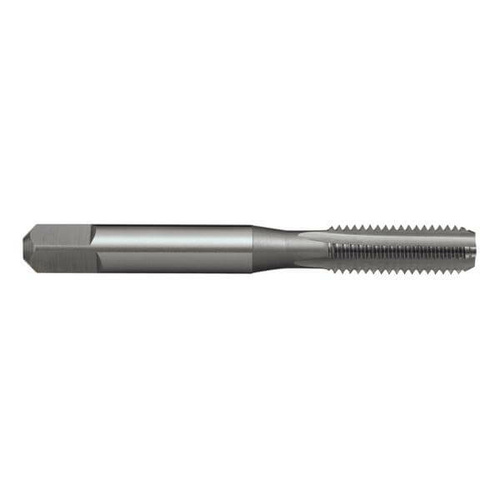

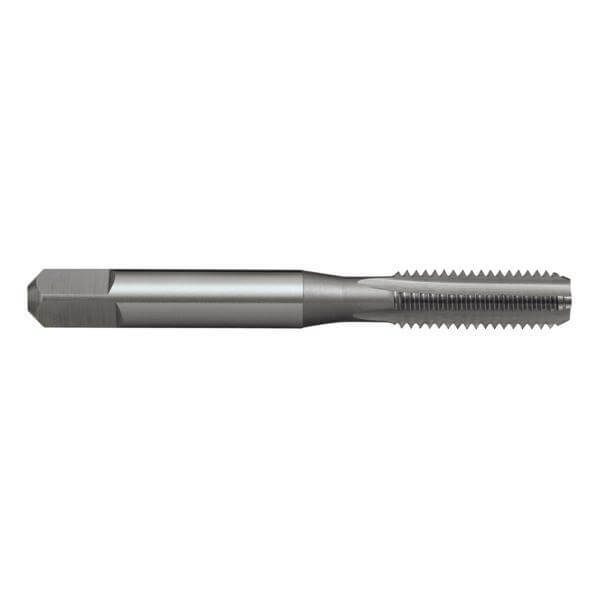

Sutton T4493175 8UN 1 1/4 x 8 Straight Flute Tap - Intermediate - HSS

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: Unified National Form 60° (8UN)
Nut Tolerance: GH8 / 2B
Lead: Intermediate

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0015472

Brand Sutton Tools

Model Number T4493175

Barcode Number 9311963433806

Diameter (inch) 1 1/4

TPI 8

Shank (mm) 22.4

L1 (mm) 151

L2 (mm) 51

z 4

Drill Size (mm) 28.5

L4 (mm) 22

Sq 18

Group Code T449
System of Measurement ISO529
Thread Form Unified National Form 60° (8UN)
Material High Speed Steel (HSS)
Finish Bright
Lead Intermediate
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance GH8 / 2B
