Description

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: UNC
  • Nut Tolerance: 2B LH
  • Lead: Bottoming

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

  • AIMS SKU A0015206
  • Brand Sutton Tools
  • Model Number T4210794
  • Barcode Number 9311963433448
  • Diameter (inch) 5/16
  • TPI 18
  • Shank (mm) 8
  • L1 (mm) 72
  • Square Size (mm) 6.3
  • Drill Size (mm) 6.6
  • L4 (mm) 9
  • z 4
  • L2 (mm) 22
  • L3 (mm) 30
  • Group Code T421
  • System of Measurement ISO529
  • Thread Form UNC
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Lead Bottoming
  • Application N (for normal general purpose type materials)
  • Nut Tolerance 2B LH
  • Max Cut Depth 1xD
  • Tap Type Straight Flute
  • Shank Form Reinforced Shank (with square drive)
SKU: A0015206

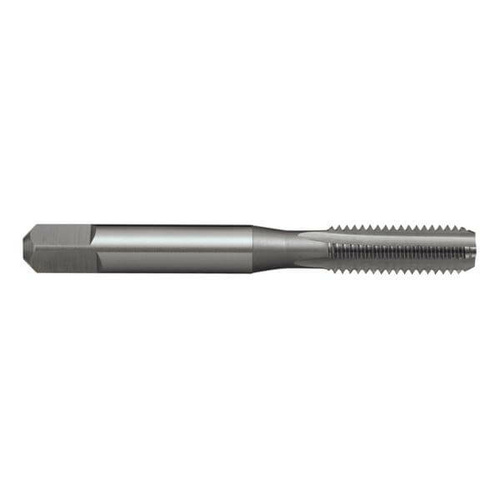

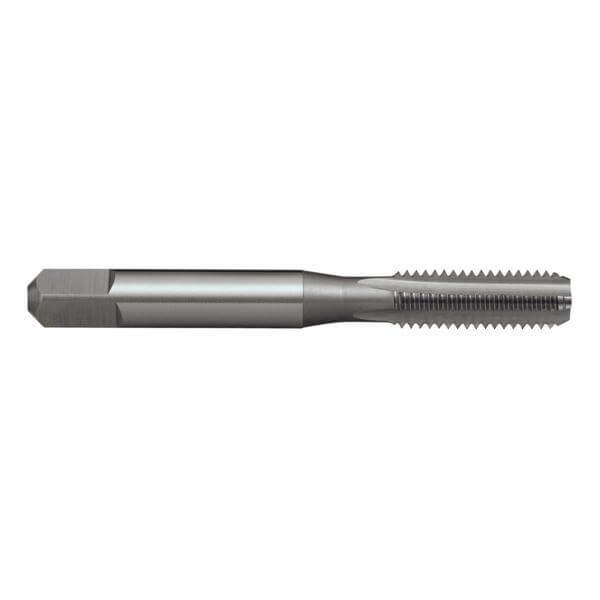

Sutton T4210794 UNC 5/16 x 18 Straight Flute Tap Bottoming Left Hand HSS

Suttons Straight Flute Taps - Left Hand - UNC - Bottomin

$72.44
RRP $107.67
SAVE $35.23 (33%)
