Description

Features

  • For high speed and precision tapping
  • For rigid tapping in CNC machines with synchronised feed
  • For aluminium and aluminium alloys
  • Process of plastic deformation to imprint thread on material
  • Blind and through holes up to 2 x d1
  • h6 endmill shank

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 2xD
  • Shank Form: Reinforced Shank (square-end, drive-flat)
  • X: ru
  • Type: Fluteless - Multi Coolant Groove
  • Standard: Sutton
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

  • AIMS SKU A0014735
  • Brand Sutton Tools
  • Model Number T3830500
  • Barcode Number 9311963432250

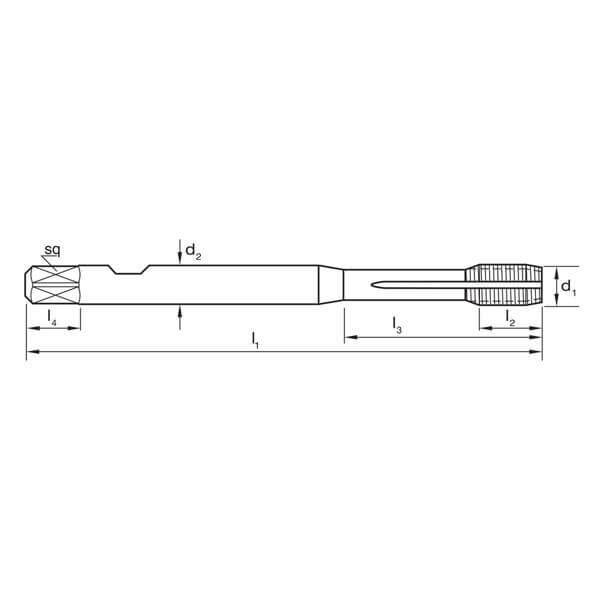

  • Shank (mm) 6
  • L1 (mm) 70
  • Pitch (mm) 0.8
  • Drill Size (mm) 4.6
  • L2 (mm) 8
  • Square Size (mm) 4.9
  • Diameter (metric) M5
  • L4 (mm) 8
  • L3 (mm) 25
  • Group Code T383
  • System of Measurement Sutton
  • Thread Form ISO Metric Coarse (M)
  • Material Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish Titanium Nitride (TiN)
  • Lead Form C / 3 x P
  • Application N (for normal general purpose type materials)
  • Nut Tolerance 6HX
  • Max Cut Depth 2xD
  • Tap Type Fluteless - Multi Coolant Groove
  • Shank Form Reinforced Shank (square-end/ drive-flat)
SKU: A0014735

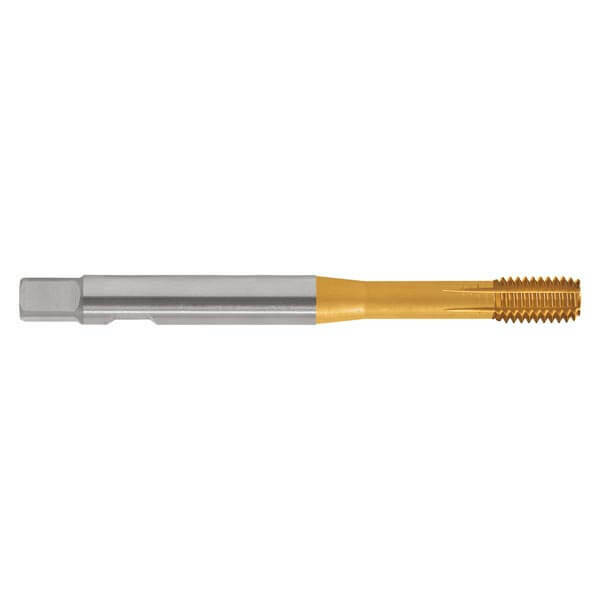

Sutton T3830500 M5 x 0.8 Thread Forming Tap - Synchro - HSSE V3 Tinite
