Description

Features

  • For long reach applications
  • Suitable for materials up to 1000N/mm2
  • Depths up to 2.5 x d1
  • d2 and sq in accordance to DIN376

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: Sutton
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

  • AIMS SKU A0014561
  • Brand Sutton Tools
  • Model Number T3390300
  • Barcode Number 9311963450612

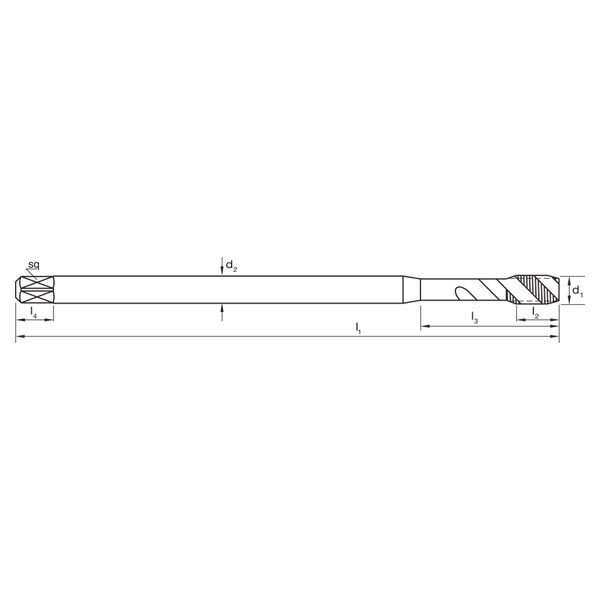

  • Shank (mm) 3.5
  • L1 (mm) 112
  • Pitch (mm) 0.5
  • Drill Size (mm) 2.5
  • L2 (mm) 5
  • Square Size (mm) 2.7
  • Diameter (metric) M3
  • L4 (mm) 6
  • z 3
  • Group Code T339
  • Thread Form ISO Metric Coarse (M)
  • System of Measurement Sutton
  • Material Premium Grade High Speed Steel (HSSE-V3)
  • Finish Bright
  • Lead Form C / 3 x P
  • Helix Angle R40
  • Application N (for normal general purpose type materials)
  • Tap Type Spiral Flute
  • Shank Form Reinforced Shank (with square drive)
  • Nut Tolerance ISO 2 / 6H
  • Max Cut Depth 2.5xD
SKU: A0014561

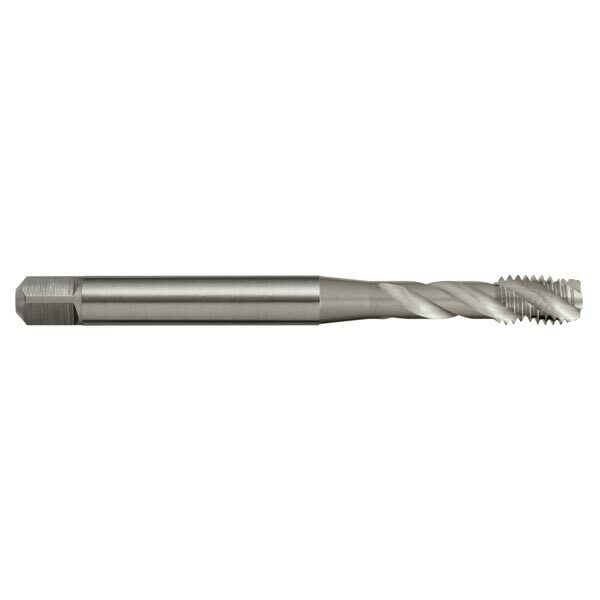

Sutton T3390300 M3 x 0.5 Spiral Flute Tap - R40 N Long - HSSE V3

Suttons Spiral Flute Taps - R40 N - Extra Length

$99.70
RRP $148.20
SAVE $48.50 (33%)
