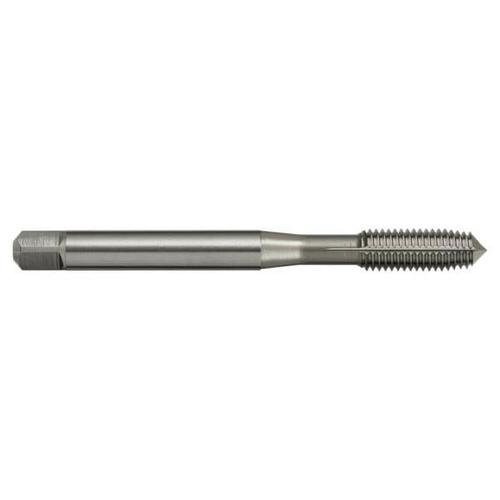

Sutton T3290300 M3 x 0.5 Thread Forming Tap - 11% Cobalt Steel TiAIN

Description

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d

Specifications

Designation: Cu (for copper materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

AIMS SKU A0014535

Brand Sutton Tools

Model Number T3290300

Barcode Number 9311963384115

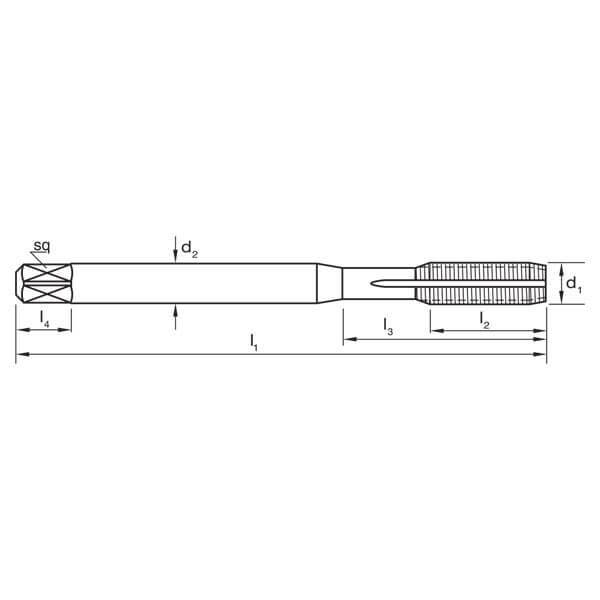

Shank (mm) 3.5

L1 (mm) 56

Pitch (mm) 0.5

Drill Size (mm) 2.8

L2 (mm) 11

Square Size 2.7

Diameter (metric) M3

L4 (mm) 6

L3 (mm) 18

Group Code T329
System of Measurement DIN2174
Thread Form ISO Metric Coarse (M)
Material High Speed Steel Cobalt (SPM-HSS Co11%)
Finish Titanium Aluminium Nitride (TiAIN)
Lead Form C / 3 x P
Application Cu (for copper materials)
Nut Tolerance 6HX
Max Cut Depth 3xD
Tap Type Fluteless - Multi Coolant Groove
Shank Form Reinforced Shank (with square drive)
