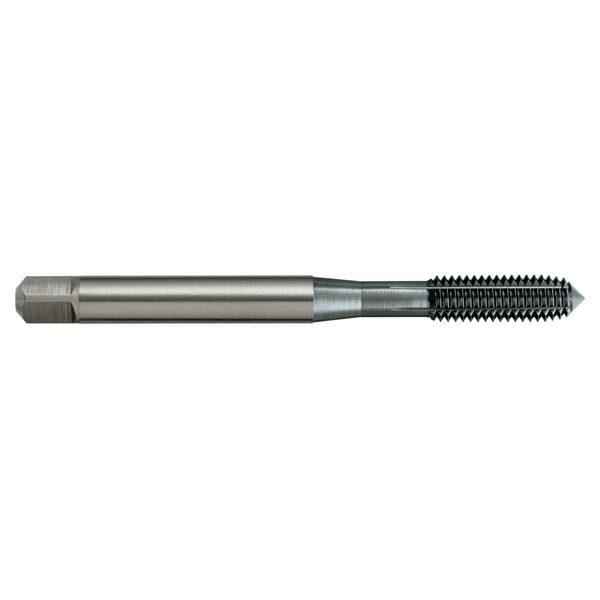

Sutton T3210300 Metric M3 x 0.5 Thread Forming Tap - HSSE V3 TiCN

Description

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form D / 4 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0014497

Brand Sutton Tools

Model Number T3210300

Barcode Number 9311963513744

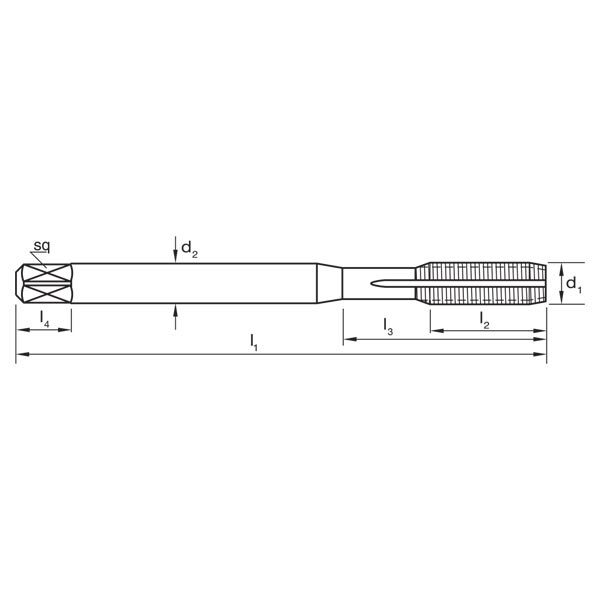

Shank (mm) 3.5

L1 (mm) 56

Pitch (mm) 0.5

Drill Size (mm) 2.8

L2 (mm) 11

Square Size (mm) 2.7

Diameter (metric) M3

L4 (mm) 6

L3 (mm) 18

Group Code T321
System of Measurement DIN2174
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Carbonitride (TiCN)
Lead Form D / 4 x P
Application N (for normal general purpose type materials)
Nut Tolerance 6HX
Max Cut Depth 3xD
Tap Type Fluteless - Multi Coolant Groove
Shank Form Reinforced Shank (with square drive)
