Description

Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - No Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

  • AIMS SKU A0014409
  • Brand Sutton Tools
  • Model Number T3090120
  • Barcode Number 9311963509273
  • Shank (mm) 2.5
  • L1 (mm) 40
  • Pitch (mm) 0.25
  • L4 (mm) 3
  • L2 (mm) 6
  • Drill Size (mm) 1.1
  • Square Size (mm) 2.1
  • Diameter (metric) M1.2
  • Group Code T309
  • System of Measurement DIN2174
  • Thread Form ISO Metric Coarse (M)
  • Material Premium Grade High Speed Steel (HSSE-V3)
  • Finish Bright
  • Lead Form C / 3 x P
  • Application N (for normal general purpose type materials)
  • Nut Tolerance 6HX
  • Max Cut Depth 3xD
  • Tap Type Fluteless - No Groove
  • Shank Form Reinforced Shank (with square drive)
SKU: A0014409

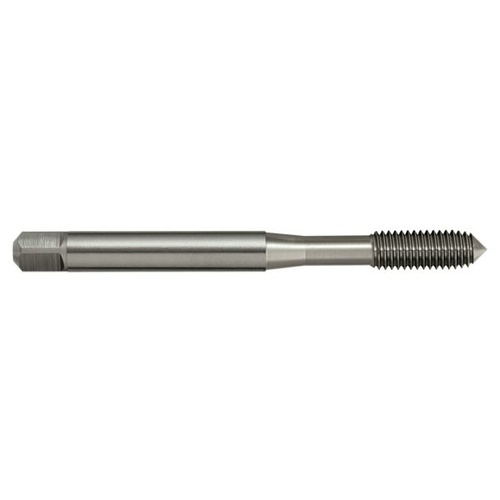

Sutton T3090120 Metric M1.2 x 0.25 Thread Forming Tap - HSSE V3

Suttons Thread Forming Taps - N

$100.45
RRP $149.31
SAVE $48.86 (33%)
