Description

Features

  • Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of 850 N/mm2
  • Through & blind holes
  • Suitable for machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: GG (for cast iron)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form C / 3 x P

Applications

  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Grey (GG) – Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic
  • Cast Iron, Nodular (GGG) - Pearlitic

Specifications

  • AIMS SKU A0014394
  • Brand Sutton Tools
  • Model Number T3070973
  • Barcode Number 9311963152905
  • TPI 28

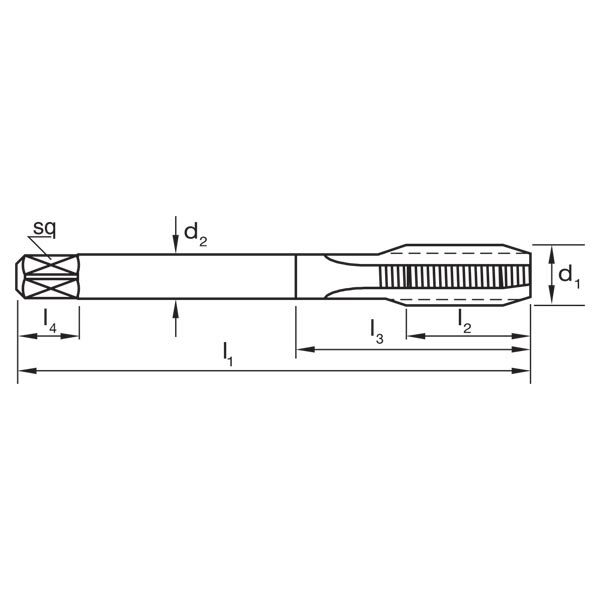

  • Shank (mm) 7
  • L1 (mm) 90
  • Diameter G1/8
  • Drill Size (mm) 8.8
  • L2 (mm) 20
  • Square Size (mm) 5.5
  • z 4
  • L4 (mm) 8
  • Group Code T307
  • System of Measurement DIN5156
  • Thread Form ISO G Parallel Series 55° (G-BSPF)
  • Material Premium Grade High Speed Steel (HSSE-V3)
  • Finish Titanium Carbonitride (TiCN)
  • Lead Form C / 3 x P
  • Application GG (for cast iron)
  • Nut Tolerance ISO 228
  • Max Cut Depth 1xD
  • Tap Type Straight Flute
  • Shank Form Reduced Shank (with square drive)
SKU: A0014394

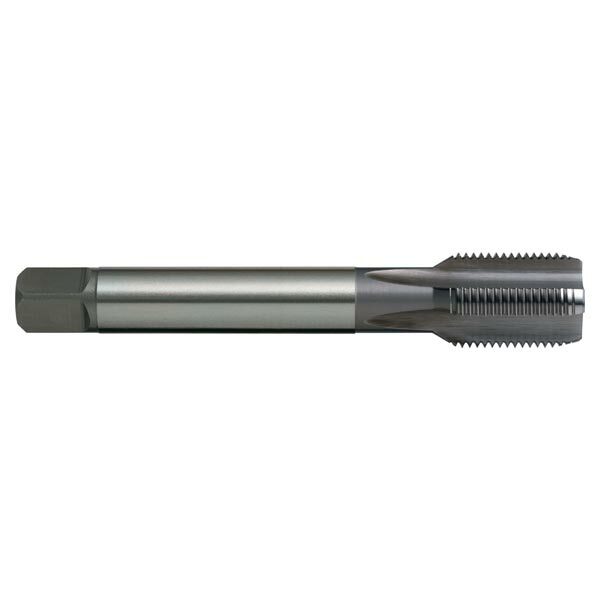

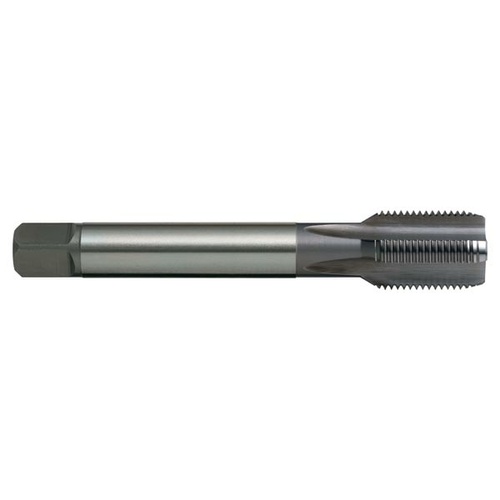

Sutton T3070973 BSPF G 1/8 x 28 Straight Flute Tap - HSSE V3 TiCN

Suttons Straight Flute Taps - GG

$144.91
