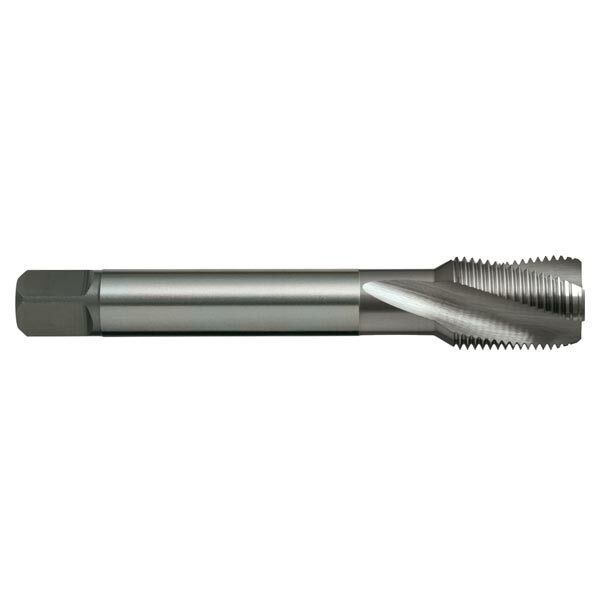

Sutton T278 G-BSPF Spiral Flute Tap - R15 N - Premium HSS - Sutton Tools

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to 1.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reduce Shank (with square drive)
Helix Angle: R15
X: als
Type: Spiral Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0014129

Brand Sutton Tools

Model Number T2781316

Barcode Number 9311963170497

TPI 19

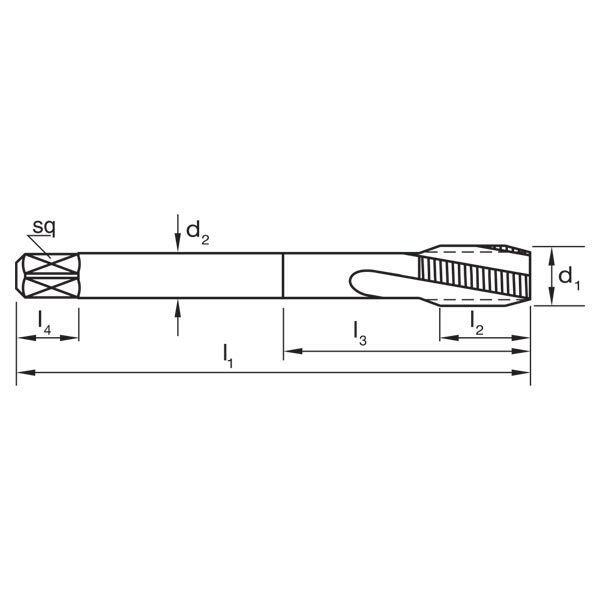

Shank (mm) 11

L1 (mm) 100

Diameter G1/4

Drill Size (mm) 11.8

L2 (mm) 22

Square Size (mm) 9

z 3

L4 (mm) 12

Group Code T278
Thread Form ISO G Parallel Series 55° (G-BSPF)
System of Measurement DIN5156
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Helix Angle R15
Application N (for normal general purpose type materials)
Tap Type Spiral Flute
Shank Form Reduce Shank (with square drive)
Nut Tolerance ISO 228
Max Cut Depth 1.5xD
