Description

Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Blind holes
  • Depths up to 1.5 x d1

Specifications

  • Designation: H (for hard materials)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R15
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6HX
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Hardened & Tempered
  • Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Grey (GG) – Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
  • Cast Iron, Malleable – Ferritic/Pearlitic
  • Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
  • Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
  • Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
  • Titanium & Titanium alloys - Beta alloys: Age Hardened
  • Cast Iron - Chilled: Cast

Specifications

  • AIMS SKU A0013661
  • Brand Sutton Tools
  • Model Number T2110500
  • Barcode Number 9311963382760
  • Shank (mm) 6
  • L1 (mm) 70
  • Drill Size (mm) 4.2
  • L3 (mm) 25
  • Square Size (mm) 4.9
  • Diameter (metric) M5
  • L2 (mm) 8
  • L4 (mm) 8
  • z 3
  • Group Code T211
  • Thread Form ISO Metric Coarse (M)
  • System of Measurement DIN371
  • Material High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish Titanium Carbonitride (TiCN)
  • Lead Form C / 3 x P
  • Helix Angle R15
  • Application H (for hard materials)
  • Tap Type Spiral Flute
  • Shank Form Reinforced Shank (with square drive)
  • Nut Tolerance ISO 2 / 6HX
  • Max Cut Depth 1.5xD
SKU: A0013661

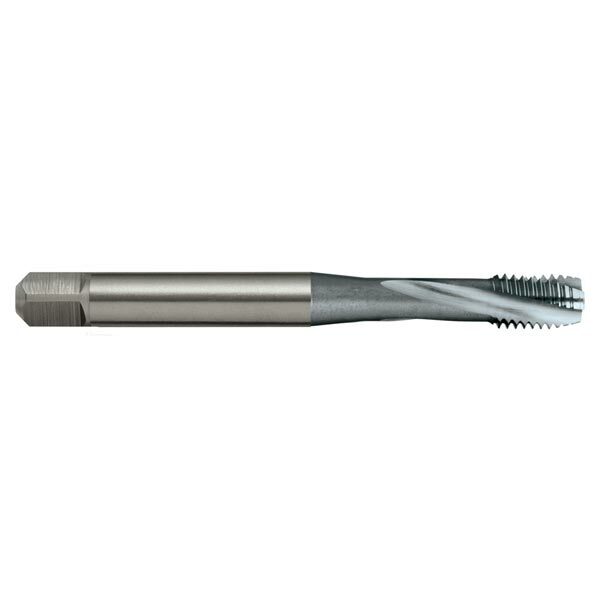

Sutton T2110500 M5 x 0.8 Spiral Flute Tap - R15 H - Cobalt Steel TiCN

Suttons Spiral Flute Taps - R15 H
