Description

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 1.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R15
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

  • AIMS SKU A0013465
  • Brand Sutton Tools
  • Model Number T1841200
  • Barcode Number 9311963401133

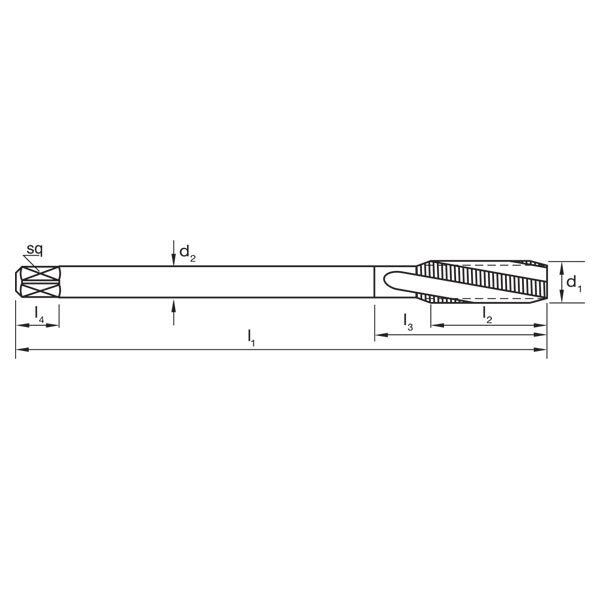

  • Shank (mm) 9
  • L1 (mm) 110
  • Pitch (mm) 1.75
  • Drill Size (mm) 10.2
  • L2 (mm) 28
  • Square Size (mm) 7
  • Diameter (metric) M12
  • L4 (mm) 10
  • z 3
  • Group Code T184
  • Thread Form ISO Metric Coarse (M)
  • System of Measurement DIN376
  • Material Premium Grade High Speed Steel (HSSE-V3)
  • Finish Bright
  • Lead Form C / 3 x P
  • Helix Angle R15
  • Application N (for normal general purpose type materials)
  • Tap Type Spiral Flute
  • Shank Form Reduced Shank (with square drive)
  • Nut Tolerance ISO 2 / 6H
  • Max Cut Depth 1.5xD
SKU: A0013465

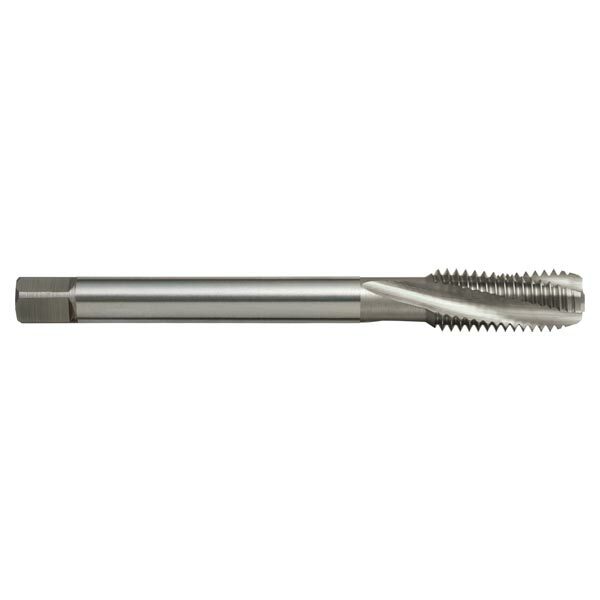

Sutton T1841200 Metric M12 x 1.75 Spiral Flute Tap - R15 N - HSSE V3

Suttons Spiral Flute Taps - R15 N

$67.23
RRP $99.95
SAVE $32.72 (33%)
