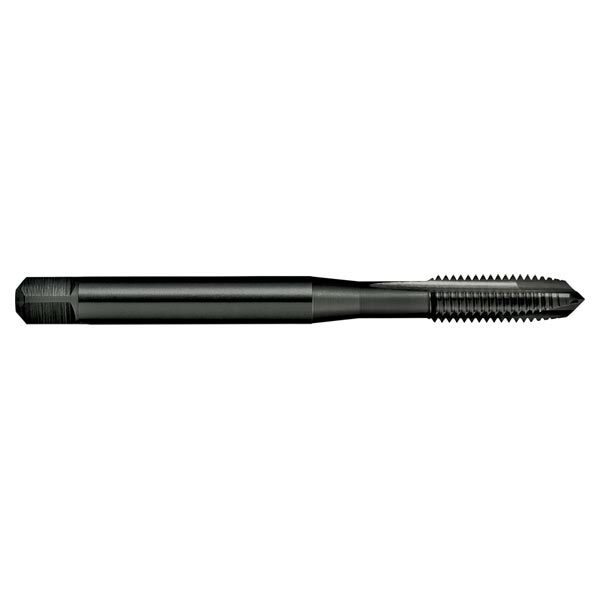

Sutton T170 UNC Spiral Point Tap - Premium HSS Blue - Sutton Tools

Description

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Specifications

AIMS SKU A0013323

Brand Sutton Tools

Model Number T1700351

Barcode Number 9311963529530

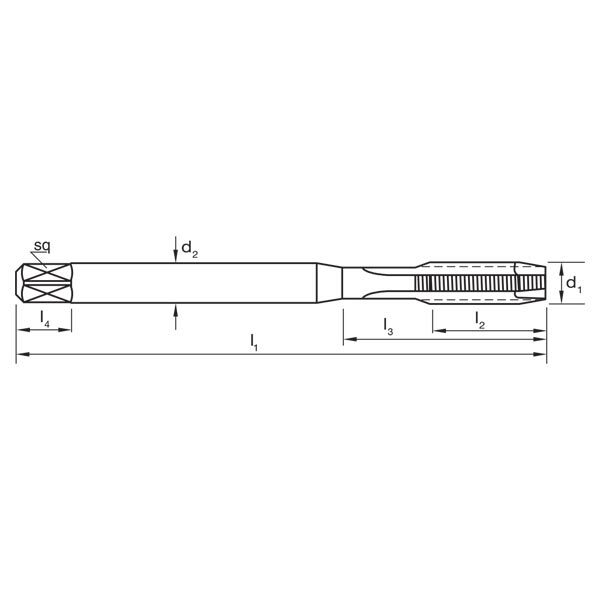

Diameter (inch) #6

TPI 32

Shank (mm) 4

L1 (mm) 56

Square Size (mm) 3

Drill Size (mm) 2.8

L4 (mm) 6

z 3

L2 (mm) 13

L3 (mm) 19

Group Code T170
System of Measurement DIN2184-1
Thread Form UNC
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form B / 4.5 x P
Application VA (for stainless and tough steels)
Nut Tolerance 2B
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Shank Form Reinforced Shank (with square drive)
