Description

Description

  • For profile & contour milling applications

Features

  • Ballnose Slot Drill 2 Flute
  • Suitable for materials up to 1600 N/mm2

Specifications

  • Designation: N
  • Material: VHM
  • Finish: Bright
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Ballnose
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Specifications

  • AIMS SKU A0010150
  • Brand Sutton Tools
  • Model Number E6022500
  • Barcode Number 9311963540801
  • Cutting Tip (mm) 25
  • Overall Length (mm) 100
  • Shank (mm) 25
  • Flute Length (mm) 38
  • Group Code E602
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Bright
  • Flutes 2 Flute
  • Profile Ball Nose
  • Reach Regular
  • Helix Angle R30
  • Shank Form HA
  • Shank Tolerance h6
  • Point Tolerance h10
  • Item Type N (finishing)
  • Rake Angle 12
SKU: A0010150

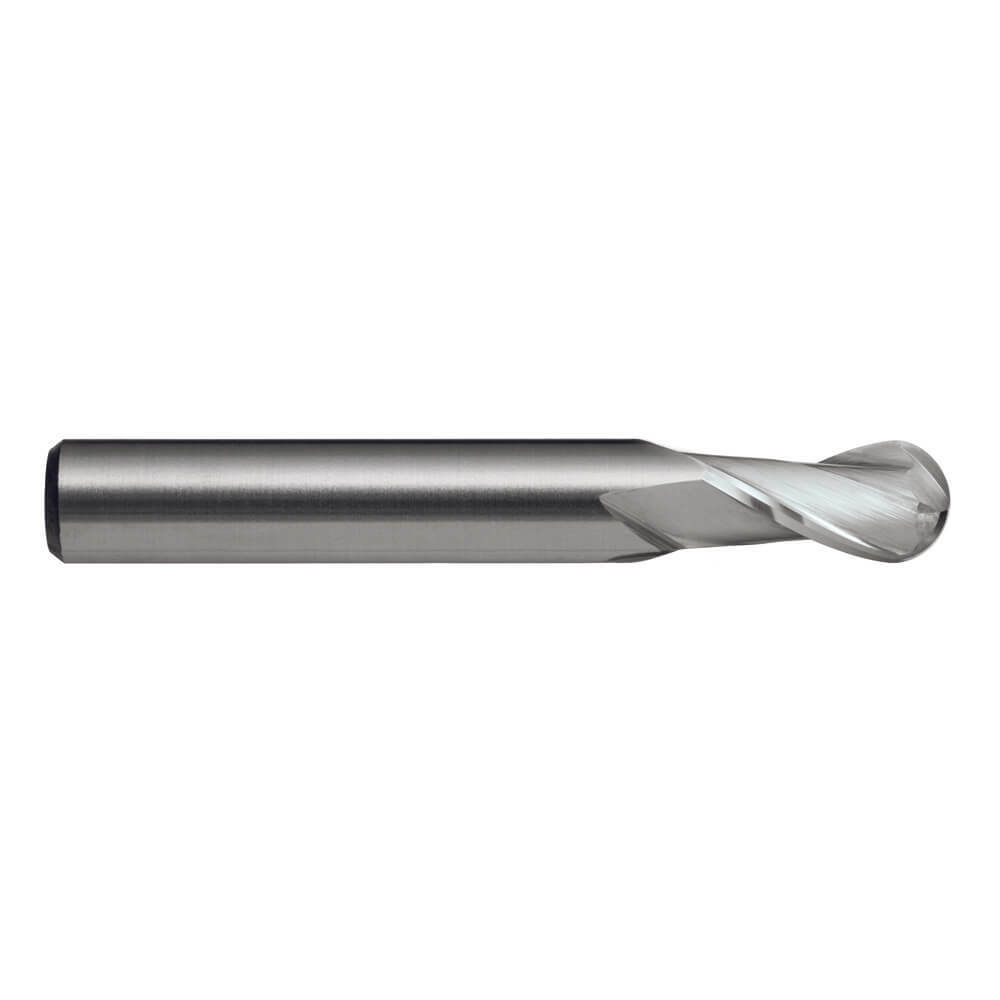

Sutton E6022500 25 x 25mm 2 Flute Ball Nose Endmill - Carbide VHM Regular

2 Flute Ballnose Slot Drills - R30 N - Regular - Tecline

$565.99
