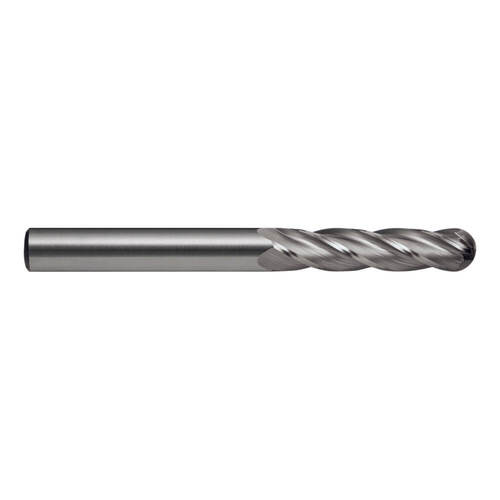

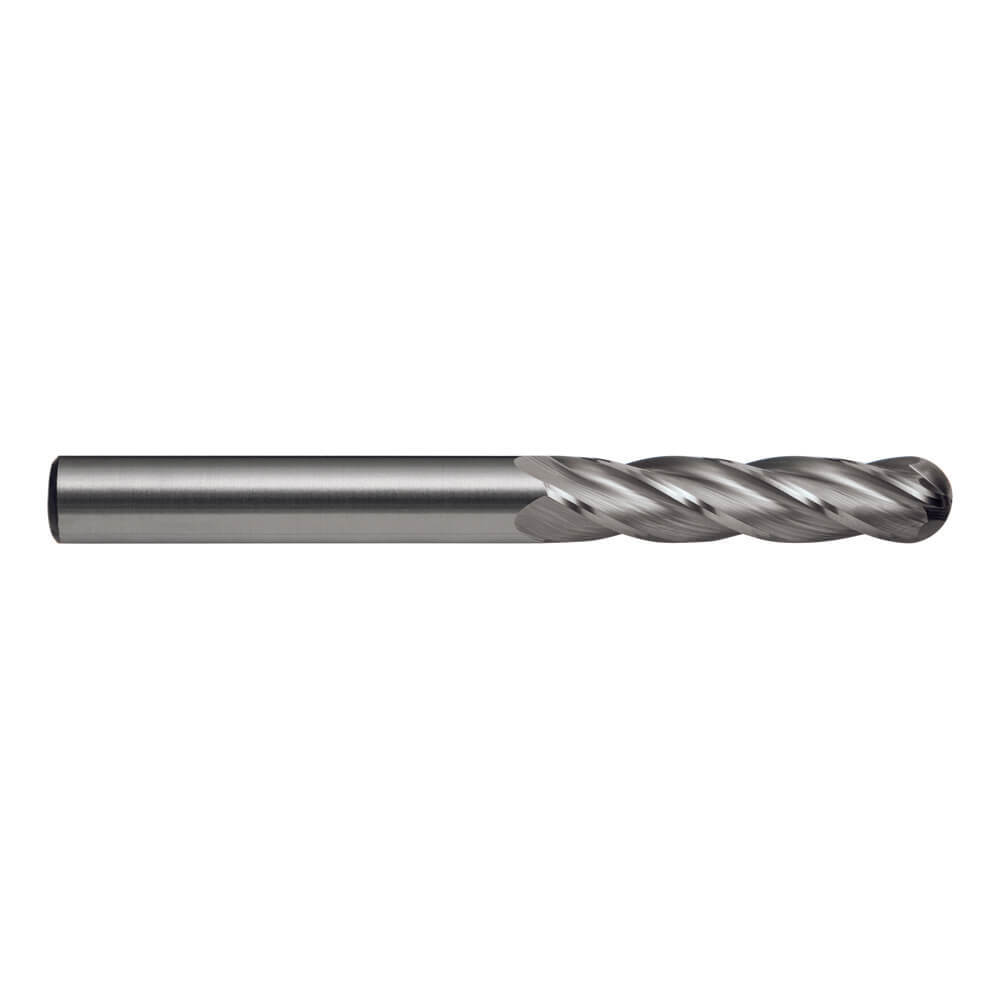

Sutton E3201000 10 x 10mm 4 Flute Ball Nose Endmill Cabide VHMExtra Long

Description

Descriptions

For profile & contour milling in extra- long reach applications
Minimal deflection due to strong/larger core

Features

Ballnose Endmill 4 Flute
Suitable for materials up to 1300 N/mm2

Specifications

Designation: N
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Ballnose
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Specifications

AIMS SKU A0009225

Brand Sutton Tools

Model Number E3201000

Barcode Number 9311963363363

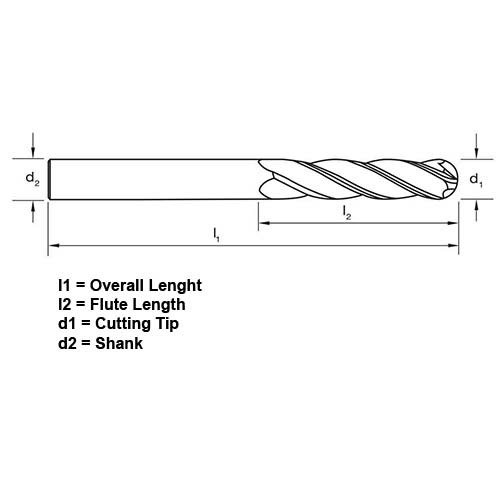

Cutting Tip (mm) 10

Overall Length (mm) 102

Shank (mm) 10

Flute Length (mm) 45

Group Code E320
System of Measurement Metric
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Bright
Flutes 4 Flute
Profile Ball Nose
Reach Extra Long
Helix Angle R30
Shank Form HA
Shank Tolerance h6
Point Tolerance h10
Item Type N (finishing)
Rake Angle 12
