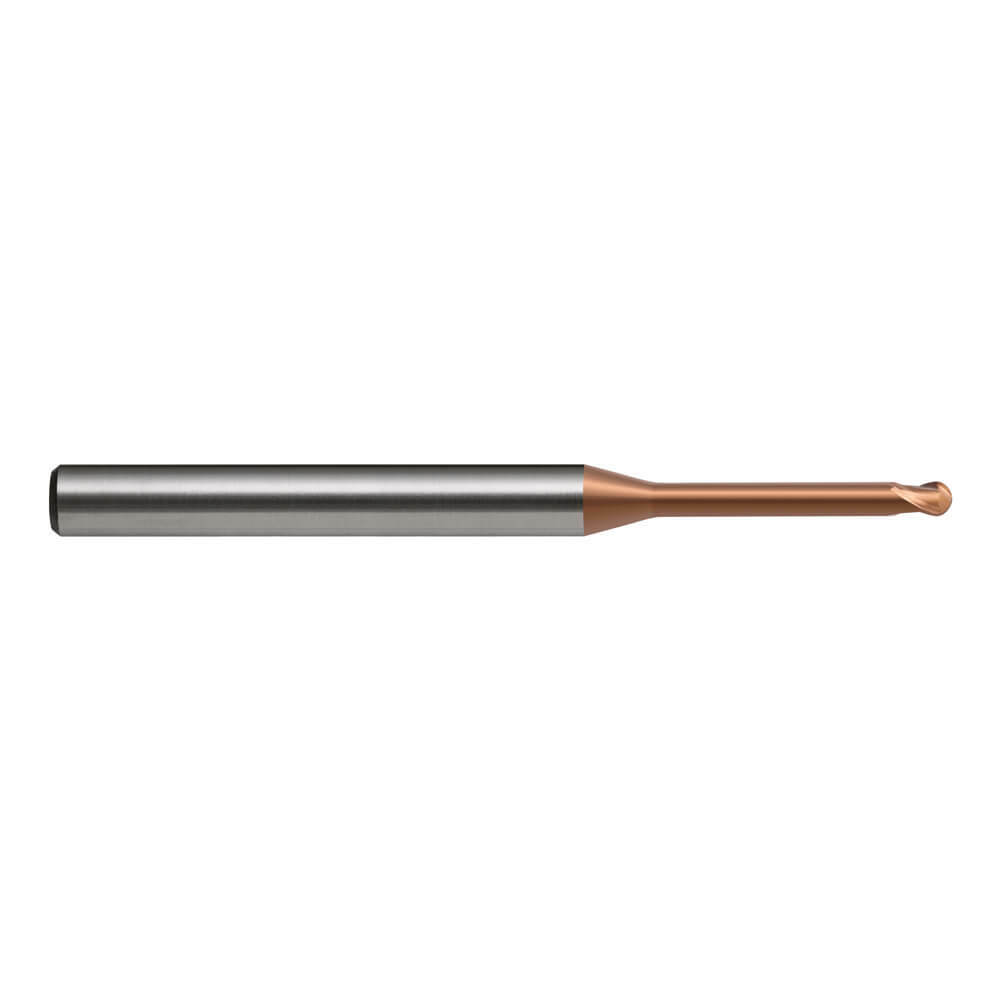

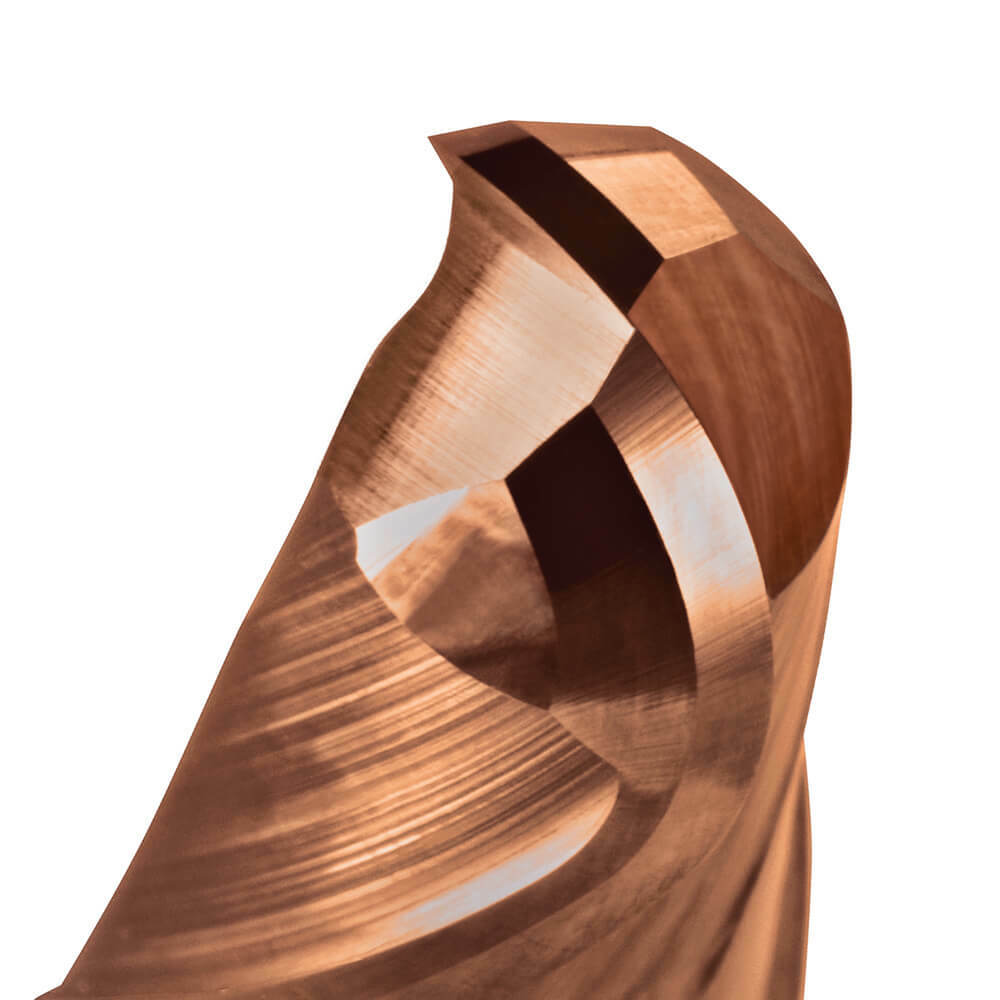

Sutton E5820301 3mm x 6mm 2 Flute Ball Nose Micro Endmill VHM Ultra TiSiN

Description

Descriptions

For profile & contour milling in long reach applications
Micro Endmill Ballnose

Features

Suitable for materials up to 35-52 HRC
TiSiN for high speed machining

Specifications

Designation: NH
Material: VHM
Finish: TiSiN
Shank Form: HA
Helix Angle: R30
Point Tolerance: 0 / -0.020
Shank Tolerance: h6
Point Form: Ballnose
Type: N (finishing)
Rake Angle: 10-12
Standard: Sutton

Applications

Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
Optimal for Steel - High alloy, cast & tool- 325 HB
Optimal for Stainless Steel - Precipitation Hardening – 250 HB
Optimal for High temperature alloys - Ni / Co based – 350 HB
Optimal for High temperature alloys - Ni / Co based – 320 HB
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys
Optimal for Hardened Steel – 45 HRC

Specifications

AIMS SKU A0010086

Brand Sutton Tools

Model Number E5820301

Barcode Number 9311963593111

Cutting Tip (mm) 3

Overall Length (mm) 50

Shank (mm) 6

Flute Length (mm) 2.4

D3 (mm) 2.85

Rad 1.5

L3 (mm) 10

Group Code E582
System of Measurement Metric
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Titanium Slicon Nitride (TiSiN)
Flutes 2 Flute
Profile Ball Nose
Reach Long Reach
Helix Angle R30
Shank Form HA
Shank Tolerance h6
Point Tolerance 0 / -0.020
Item Type N (finishing)
Rake Angle 10-12
