Specifications
- AIMS SKU A0009592
- Brand Sutton Tools
- Model Number E4421600
- Barcode Number 9311963561585
- Cutting Tip (mm) 16
- Overall Length (mm) 140
- Shank (mm) 16
- Flute Length (mm) 17
- D3 (mm) 15.5
- L3 (mm) 42
- Group Code E442
- System of Measurement Metric
- Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
- Finish Aluminium Chromium Nitride (AlCrN)
- Flutes 4 Flute
- Profile Ball Nose
- Reach Long Reach
- Helix Angle R30
- Shank Form HA
- Shank Tolerance h5
SKU: A0009592

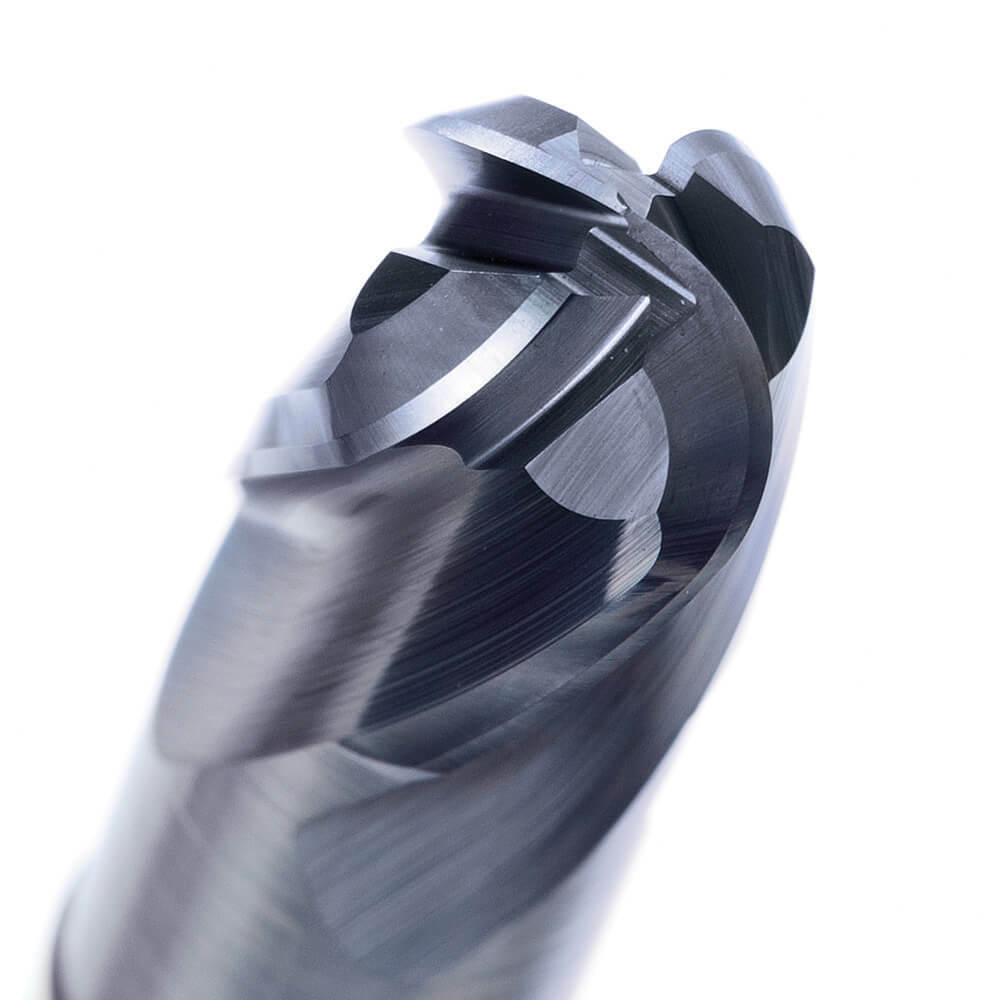

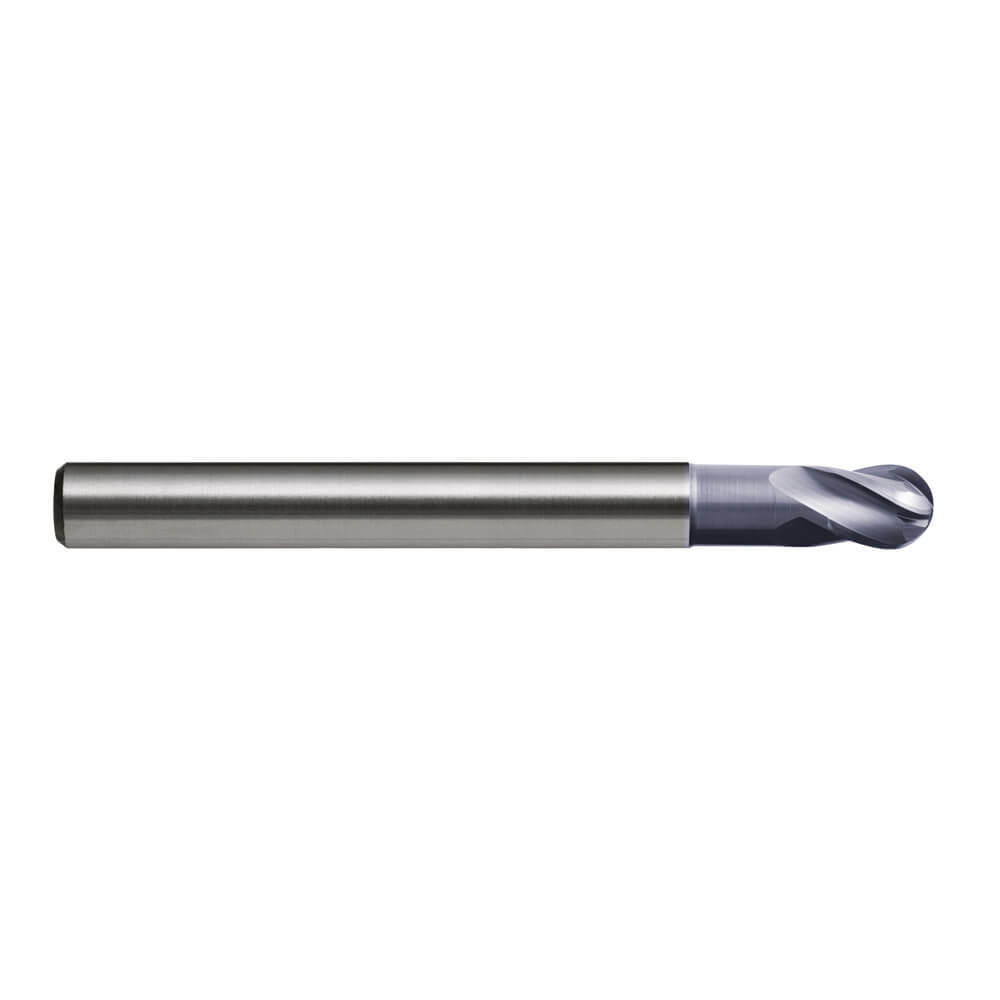

Sutton E4421600 16 x 16mm 4Flute Ball Nose Slot Drill Carbide AlCrN Long
2 Flute Ballnose Slot Drills - R30 UNI - Long Reach
$376.77
