Descriptions

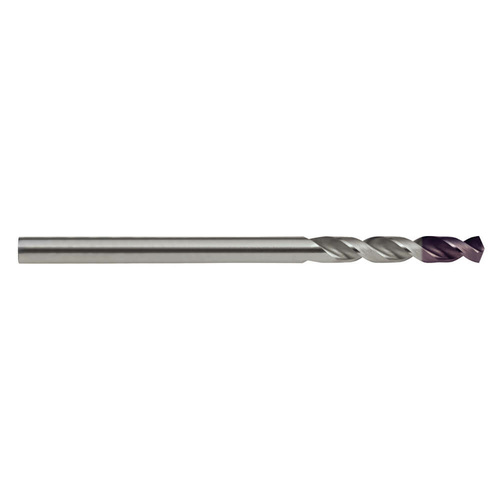

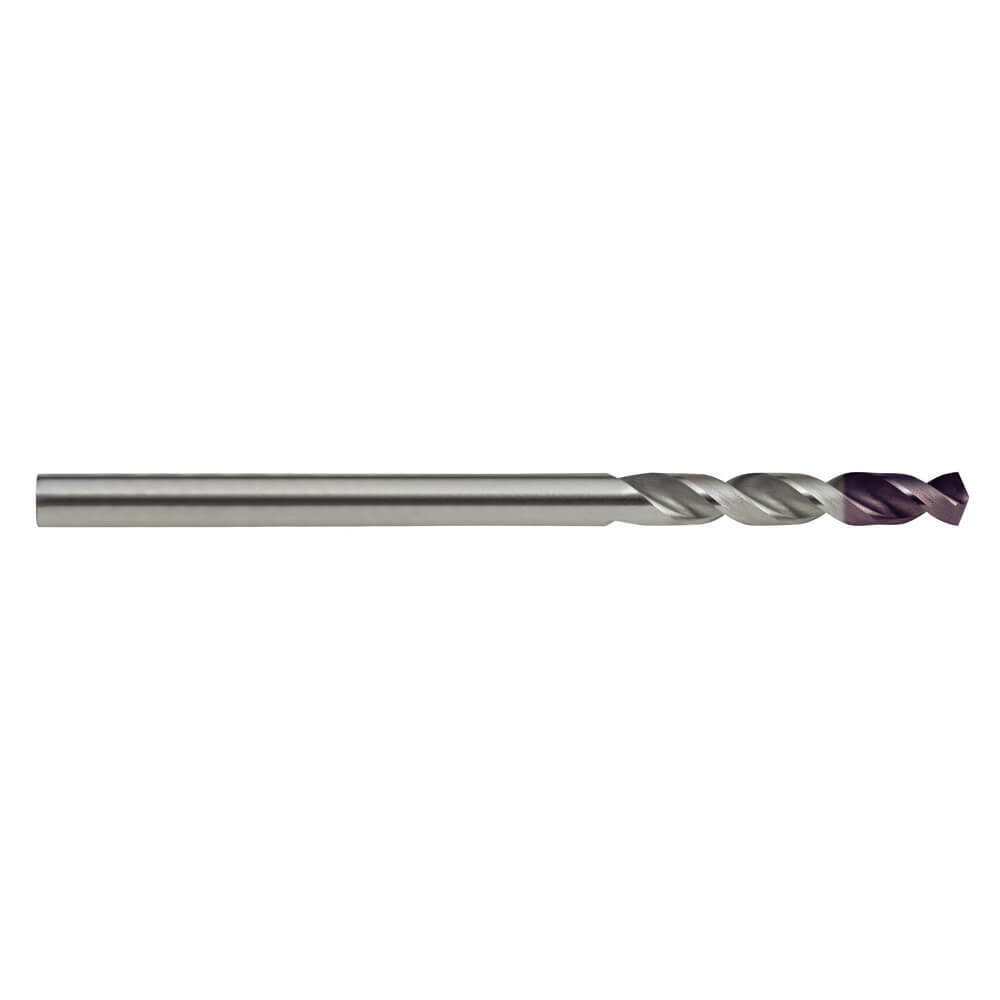

• Short flute length jobber drill
• Cost effective solution for austenitic stainless steels and soft materials
• Unique stepped core for excellent penetration
• TiAlN tip for good wear resistance

Features

• Jobber Drill R40 InOx unique stepped core
• For excellent penetration tiAlN tip
• For good wear resistance

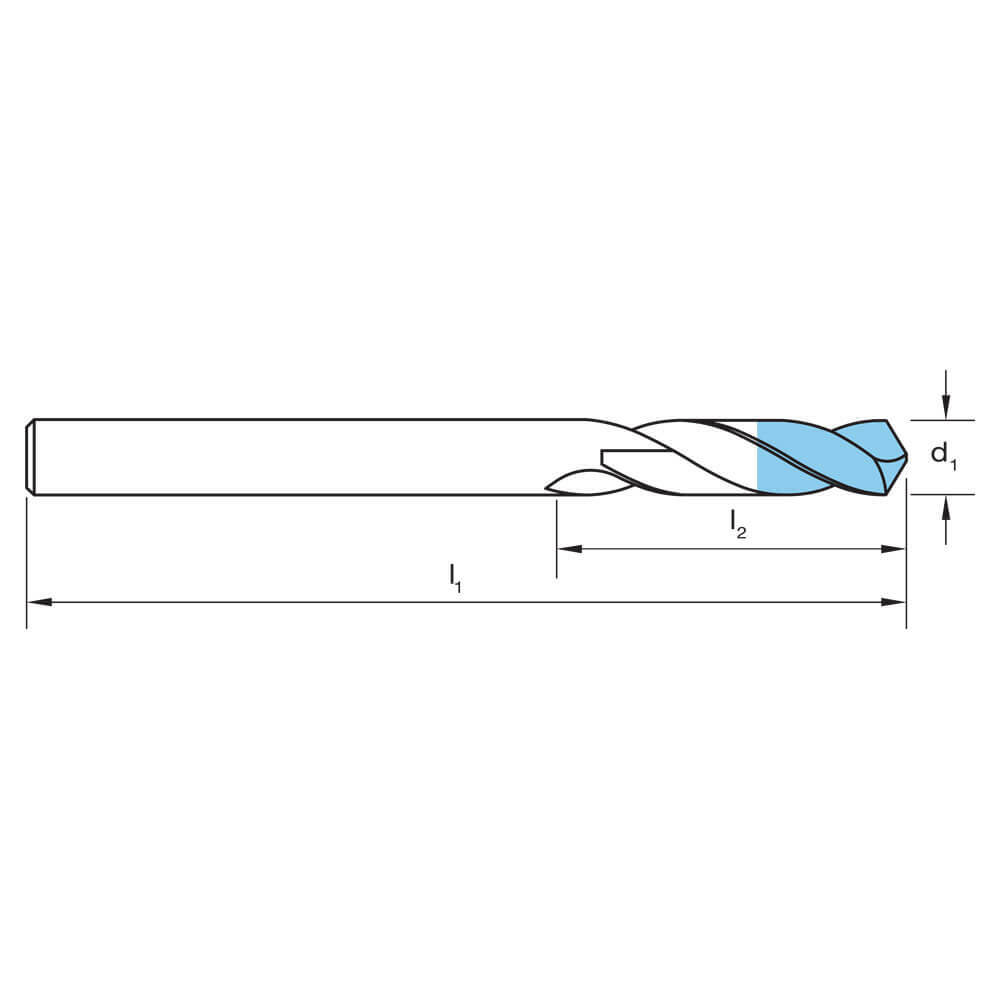

Specifications

• Designation: VA
• Material: High Speed Steel
• Finish: TiAIN Tip
• Maximum Cut Depth: 3XD
• Shank Form: A
• Helix Angle: R40
• X: als
• Point Tolerance: h8
• Point Angle: 130°
• Point Form: Form B
• Cutting Edges: ul
• Standard: DIN 338

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
• Optimal for Stainless Steel – Austenitic- 180 HB
• Optimal for Stainless Steel – Duplex- 250 HB
• Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
• Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
• Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
• Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
