Descriptions

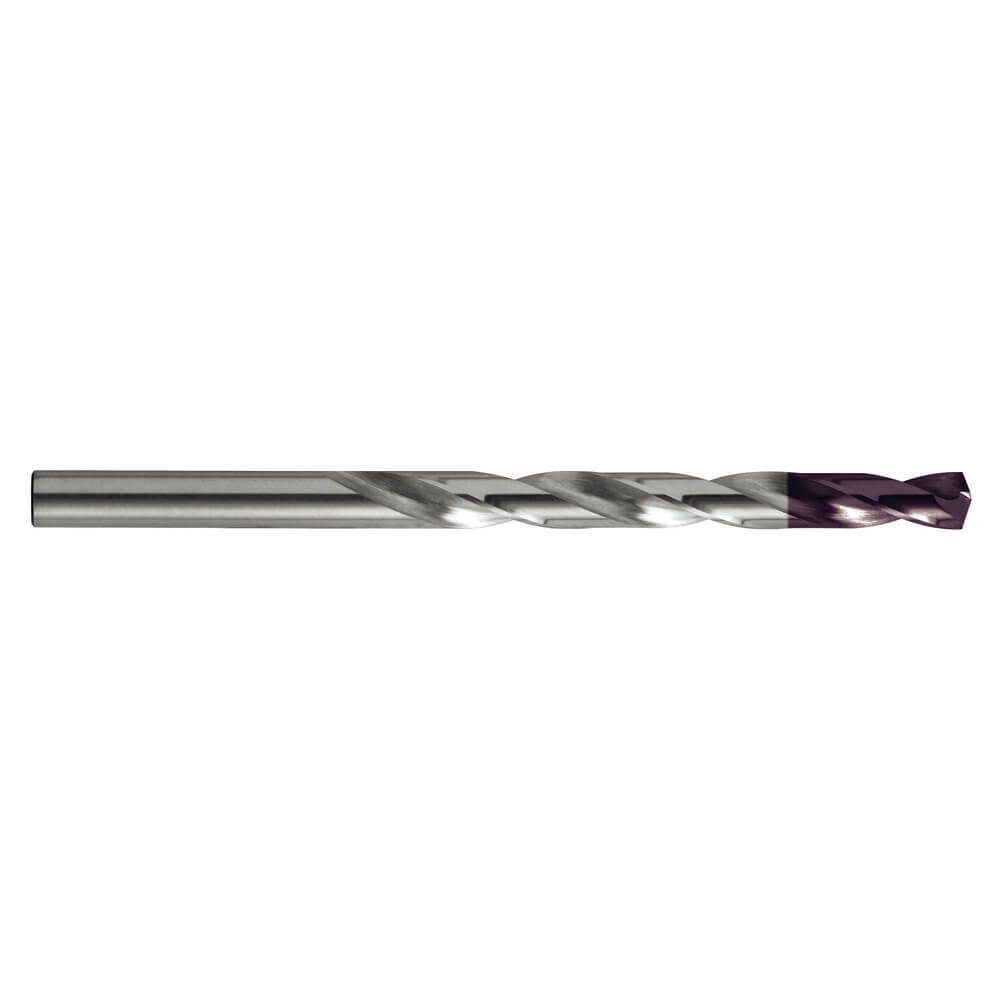

• General purpose drill

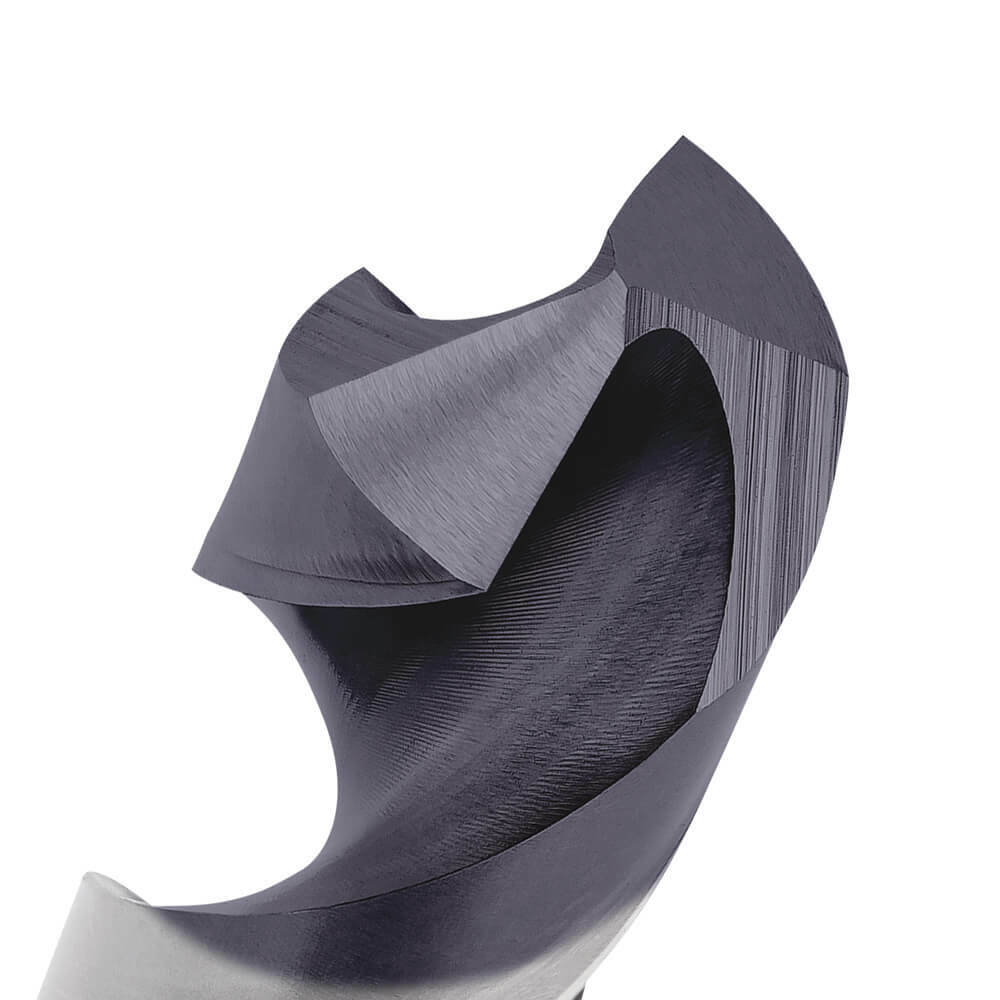

• Split point for easier penetration
• Designed for machine and hand-held drilling

Features

• Jobber Drill Viper Plus for easier penetration
• Split point for easier penetration
• Designed for machine and hand-held drilling
• TiAlN for longer tool life

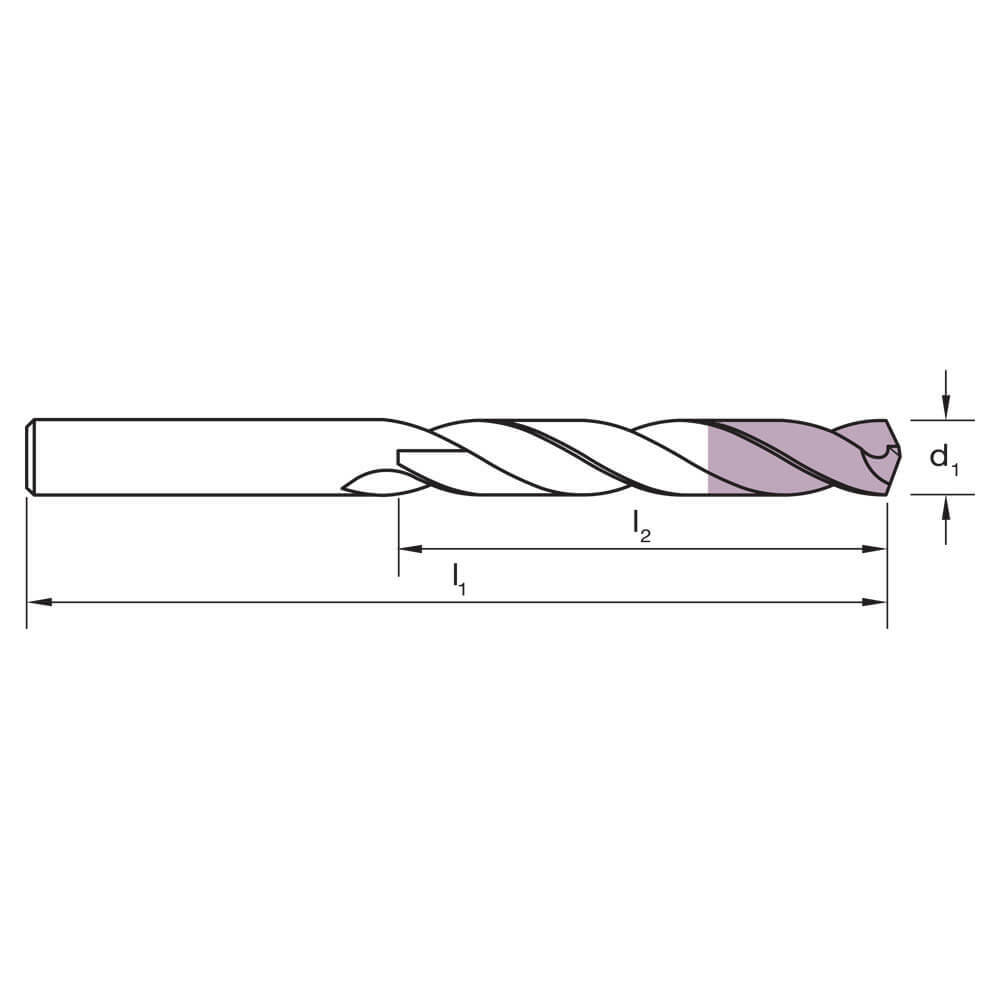

Specifications

• Designation: N
• Material: High Speed Steel
• Finish: TiAIN Tip
• Maximum Cut Depth: 5XD
• Shank Form: A
• Helix Angle: R30
• X: als
• Point Tolerance: h8
• Point Type: 118° Form C
• Cutting Edges: ul
• Standard: ANSI B94-11/DIN 338

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
• Optimal for Steel - High alloy, cast & tool- 200 HB
• Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
• Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
• Optimal for Cast Iron, Malleable – Ferritic- 130 HB
