Sutton Tools Blue Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling ferrous metals. The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials.

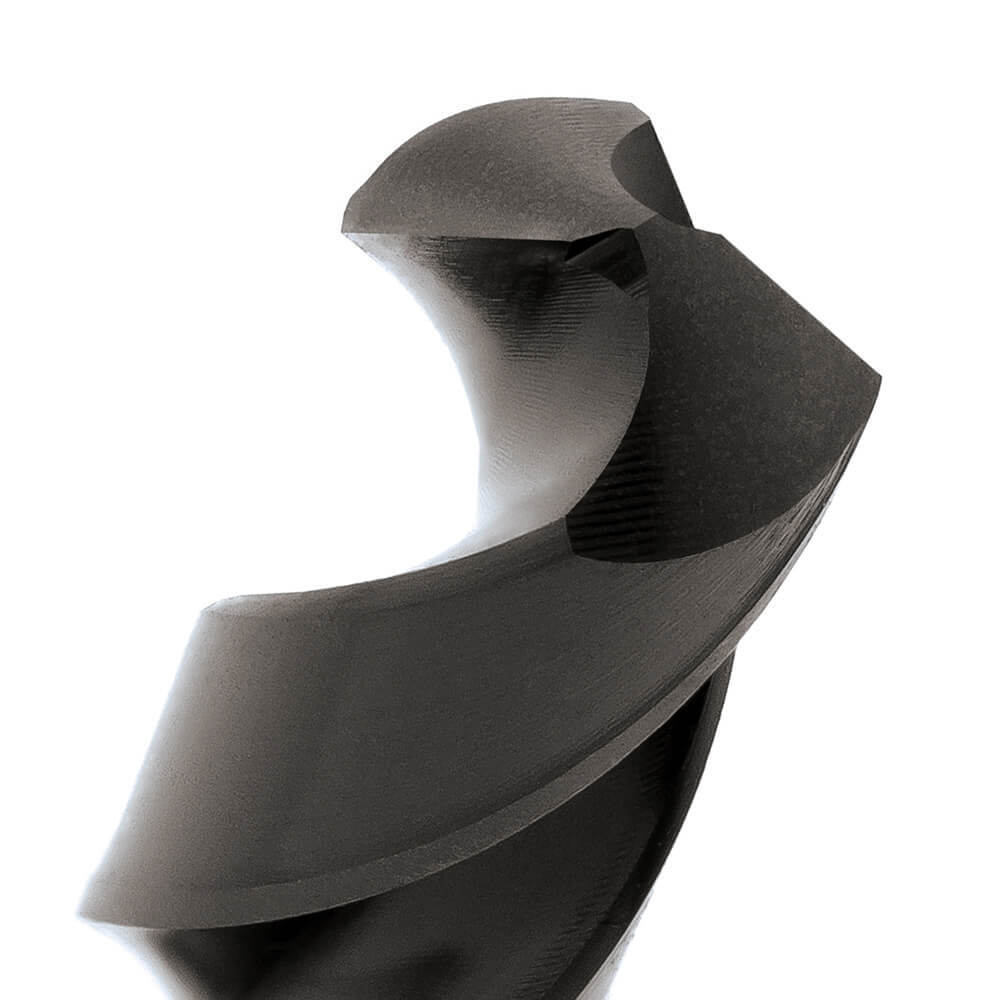

  • 118° web thinned point reduces the amount of thrust required
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels


  • Designation: N
  • Material: HSS
  • Finish: Blu
  • Max Cut Depth: 5 x D
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Standard: ANSI B94-11 / DIN338


  • ISO: H
  • VDI: 41
  • Description: Cast Iron
  • Condition: Hardened and Tempered
  • Hardness: 55HRC


  • AIMS SKU A0003170
  • Brand Sutton Tools
  • Model Number D1020800
  • Barcode Number 9311963031545
  • Thread Diameter (mm) 8
  • Overall Length (mm) 117
  • Flute Length (mm) 75
  • Group Code D102
  • Type Jobber Drill Bit
  • System of Measurement DIN 338,Metric,ANSI B94-11
  • Material High Speed Steel (HSS)
  • Finish Steam Oxide (Blue)
  • Helix Angle R30
  • Point Tolerance h8
  • Point Angle 118
  • Maximum Cut Depth 5XD
  • Shank Form A
  • Point Form A
SKU: A0003170

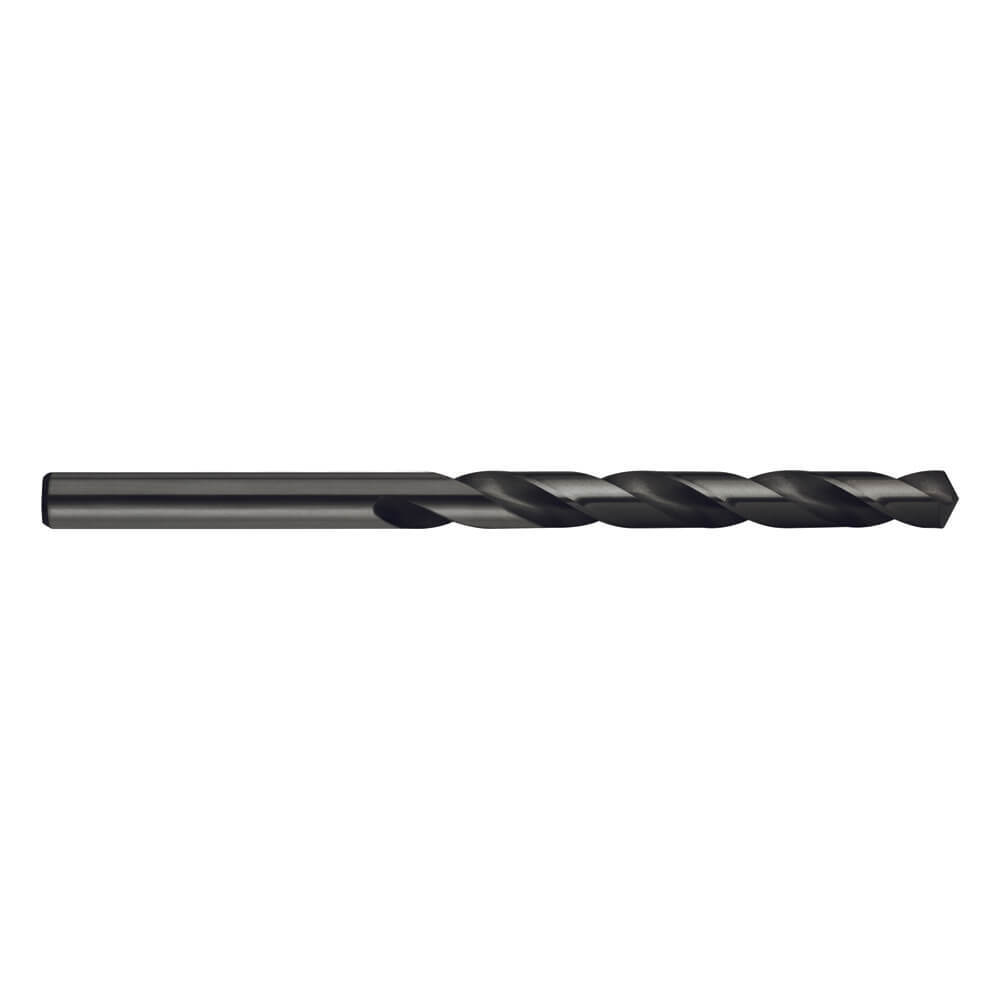

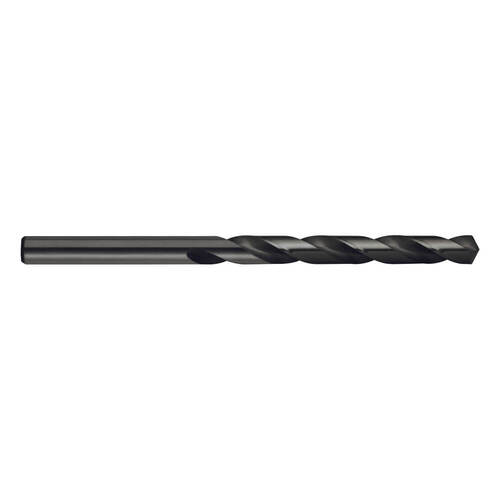

Sutton D1020800 8mm Jobber Drill Bit Blue Bullet - HSS

Sutton Tools Jobber Drill Bits - Blue Bullet

RRP $16.18
SAVE $6.76 (42%)
5/5 based on 6 reviews.
