Descriptions

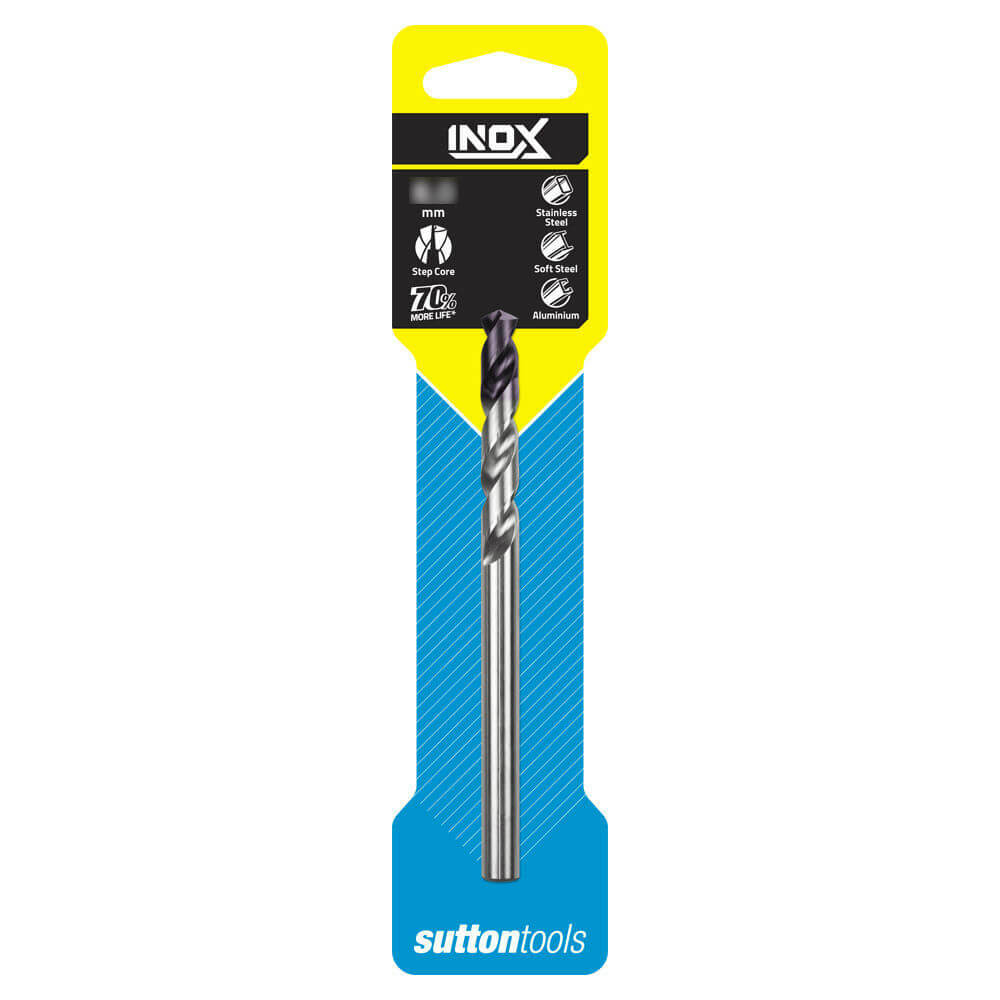

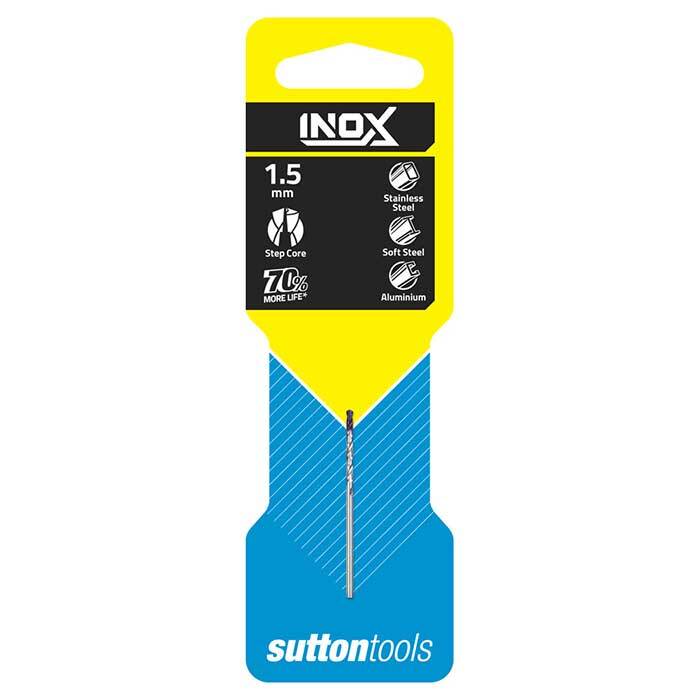

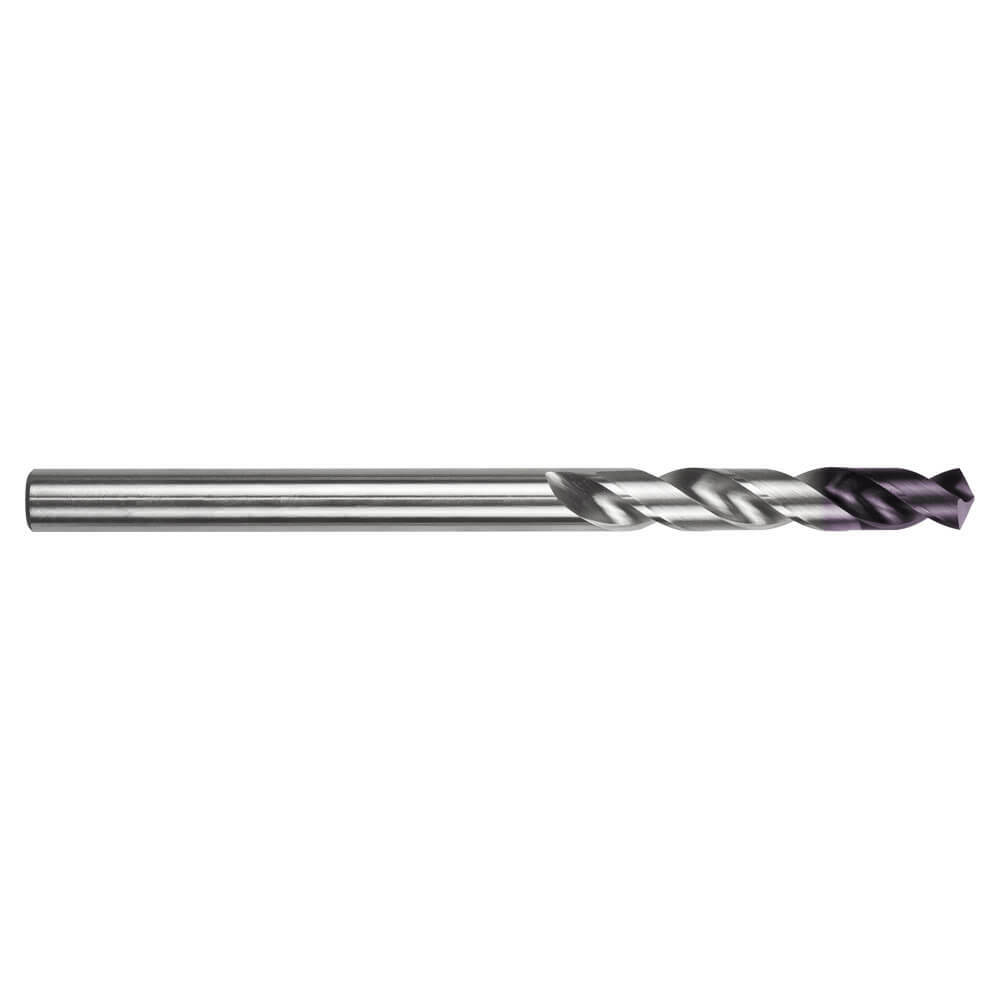

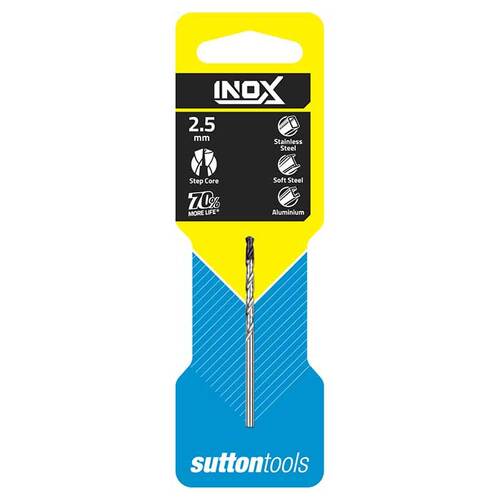

• Sutton Tools INOX jobber drills are an industrial quality drilling solution specially designed for superior performance in stainless steel
• Tailored to overcome the difficult-to-machine material properties of stainless steel

Features

• Specialized design achieves 70% more life in stainless steel than standard drill bits
• Futura Nano PVD coated tip for ultimate wear resistance
• Short flute with fast spiral for maximum rigidity & swarf control

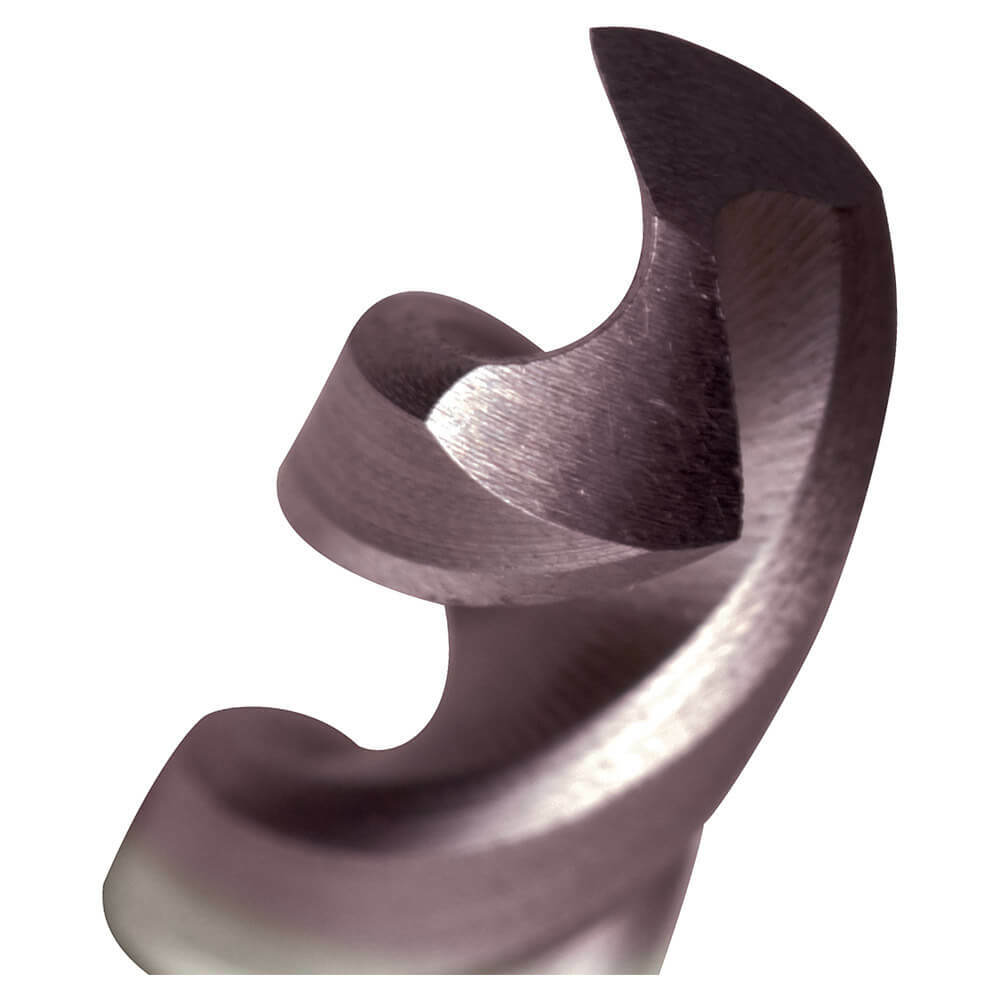

• Unique point and stepped core designed for superb penetration and minimal work hardening
• Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance

Specifications

• Designation: VA
• Material: High Speed Steel
• Finish: TiAIN
• Maximum Cut Depth: 3XD
• Shank Form: A
• Helix Angle: R40
• X: als
• Point Tolerance: h8
• Point Angle: 135°
• Point Form: Form A
• Cutting Edges: ul
• Standard: DIN 338

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
• Optimal for Stainless Steel – Austenitic- 180 HB
• Optimal for Stainless Steel – Duplex- 250 HB
• Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
• Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
• Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
• Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
