Description

Description

  • Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminum, brass, wood & plastics

Features

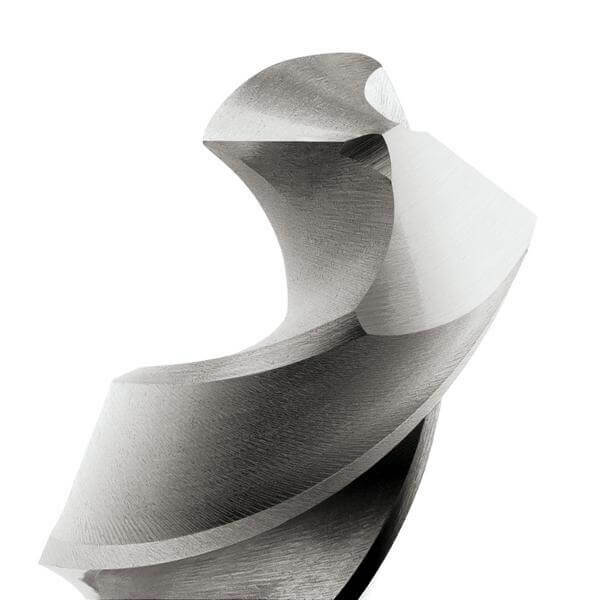

  • 118° standard point for general purpose applications
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Bright
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: ANSI B94-11/DIN 338

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable- 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable- 100 HB

Specifications

  • AIMS SKU A0002820
  • Brand Sutton Tools
  • Model Number D1010159
  • Barcode Number 9311963000411
  • Thread Diameter (inch) 1/16
  • Overall Length (mm) 48
  • Flute Length (mm) 22
  • Group Code D101
  • Type Jobber Drill Bit
  • System of Measurement Imperial,ANSI B94-11,DIN 338
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Helix Angle R30
  • Maximum Cut Depth 5XD
  • Shank Form A
  • Point Form A
  • Point Tolerance h8
  • Point Angle 118
SKU: A0002820

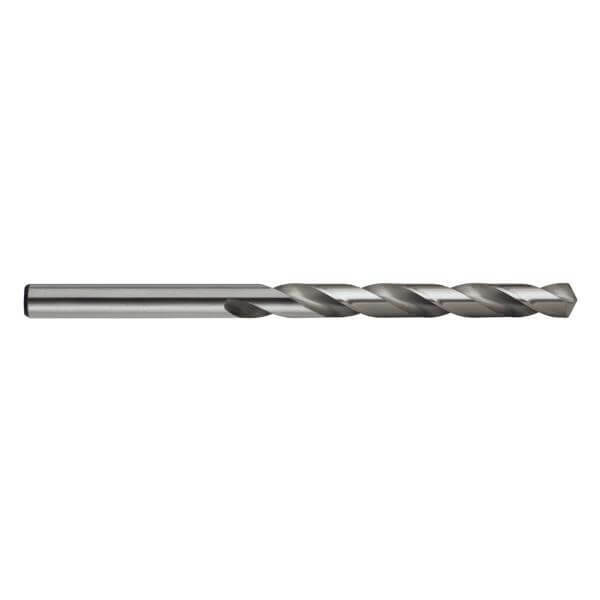

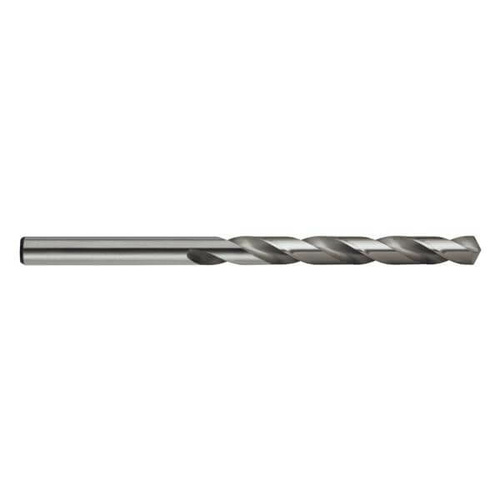

Sutton D1010159 1/16" Jobber Drill Bit Silver Bullet HSS

Sutton Tools Jobber Drill Bits - Silver Bullet

$2.85
RRP $42.90
SAVE $40.05 (93%)
