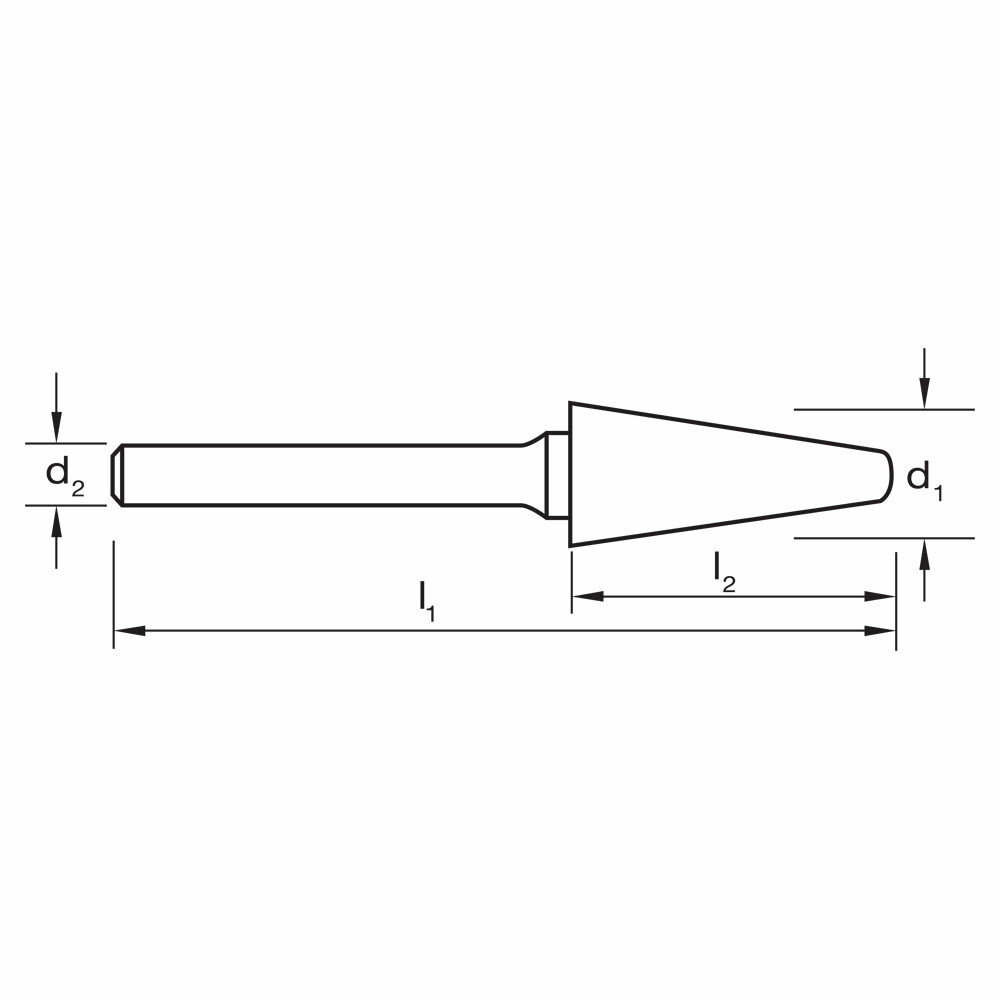

Dimensions

• d1 (in): 3/8
• d2 (in): 1/4
• l1 (in): 7-1/16
• l2 (in): 1 -1/2
• Rad: 14
• Shank: 1/4

Features

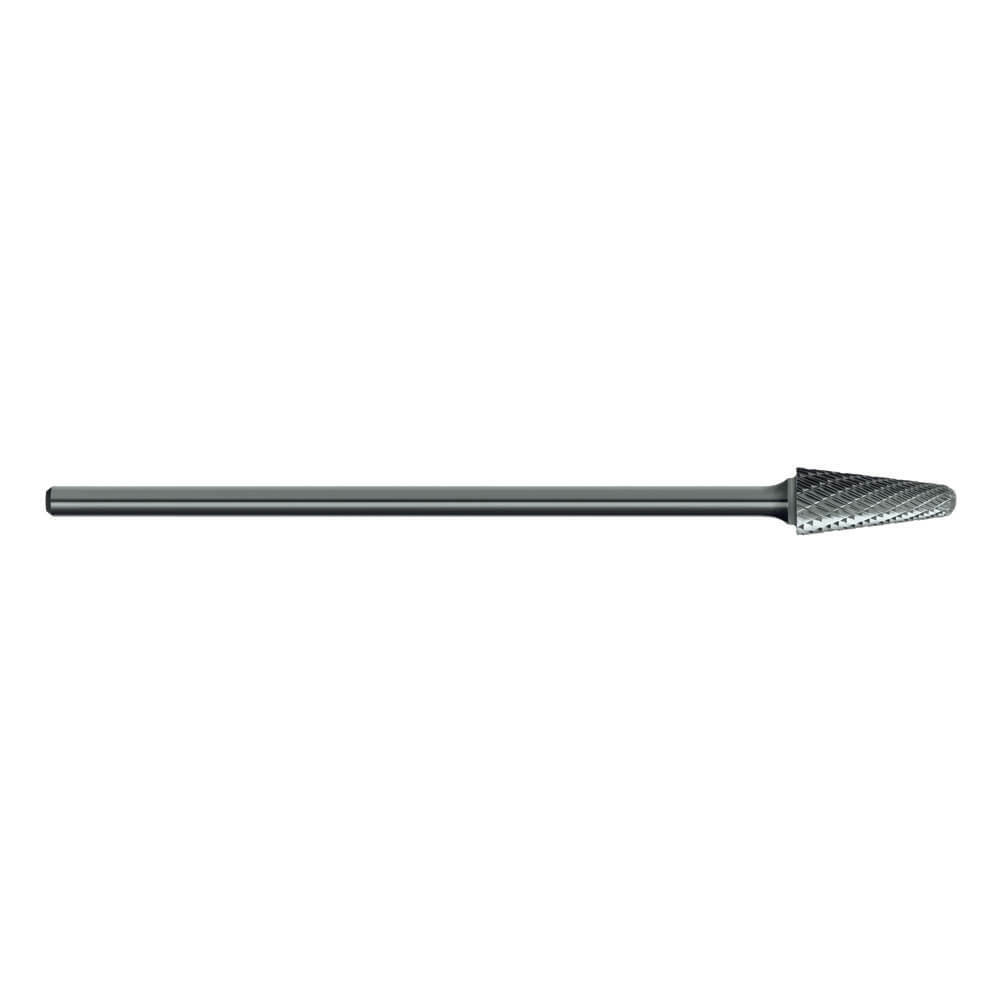

• Taper Shape Carbide Burs Long Reach
• The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
• Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

Specifications

• Material: VHM
• Finish: Brt
• Type: Taper Shape
• Application: Steel

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
• Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
• Stainless Steel - Austenitic: Age Hardened
• Cast Iron, Grey (GG) - Ferritic / Pearlitic
• Cast Iron, Nodular (GGG) – Ferritic
• Cast Iron, Malleable – Ferritic
• Cast Iron, Malleable - Pearlitic
