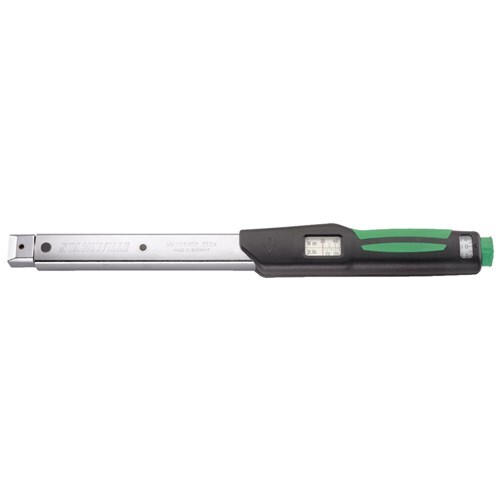

MANOSKOP® 730N Mechanical Torque Wrench

Benefits at a glance:

  • Accurate one-handed setting – quick & easy control using the knob at the end of the handle
  • Audible setting positions
  • Fail-safe setting mechanism in the knob
  • Clearly readable twin scale (N m and ft.lb)
  • Noticeable double signals when the preset torque is reached
  • Square drives with
  • Handle is resistant to oils, grease, fuels, brake fluids and Skydrol
  • Deviation of indication ± 3%

Basic wrenches with tool carrier for insert tools

  • Clicking torque wrench with mount for interchangeable socket tools, rapid, accurate setting using Quick Select quick-action adjuster
  • With QuickRelease safety lock, double stop signals, very clear twin scales
  • With colour coded N m/ft.lb and ft.lb/inch.lb. markings
  • Long-term repeated accuracy.
  • The measuring element is only under load while force is being applied
  • No need for manual reset to zero.
  • All the sensitive components are protected by a sturdy housing.
  • The 2-component handle with its ergonomically designed green softer layers is resistant to oils, grease, fuels, brake fluids and Skydrol.
  • If the wrench is misused – e.g. to force seized-up screws – the measuring mechanism is deactivated.
  • The swap-over inserts can also be used to apply torque in an anticlockwise direction.
  • Easily adjustable without disassembly, e.g. using testers No-798, No-799 or No-7707 W.
  • Guaranteed maximum accuracy deviation ± 3%. With certificate.

Specifications

  • AIMS SKU A0105641
  • Brand Stahlwille
  • Model Number SW730N/10P - 50181010
  • Barcode Number 4018754139521
  • Tool Size (mm) 9 x 12
  • SF (mm) 17.5
  • H (mm) 23
  • LF (mm) 336
  • b (mm) 28
  • L (mm) 386
  • Nominal Torque (nm) 20-100
  • Type Torque Wrench
  • System of Measurement Metric
SKU: A0105641

Stahlwille #10 20-100Nm, 9 x 12mm Torque Wrench W/ Tool Carrier -SW730N/10P

Stahlwille Torque Wrench W/ Tool Carrier For Insert Tool

$1,578.36
