***Size 9 x 12mm has a lead time of 150 days from the date of order. Contact AIMS for further assistance.***

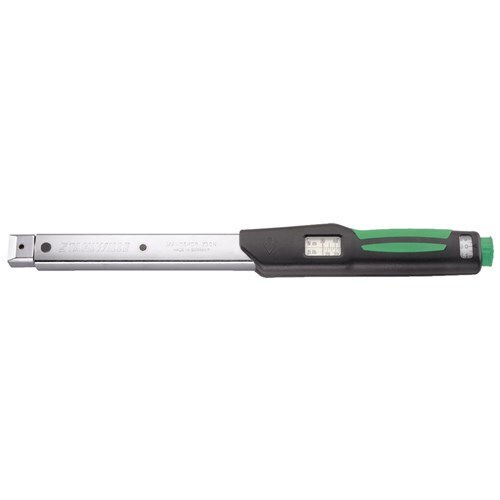

MANOSKOP 730N Mechanical Torque Wrench

Basic wrenches with tool carrier for insert tools

• Clicking torque wrench with mount for interchangeable socket tools, rapid, accurate setting using Quick Select quick-action adjuster
• With QuickRelease safety lock, double stop signals, very clear twin scales
• With colour coded N m/ft.lb and ft.lb/inch.lb. markings
• Long-term repeated accuracy.
• The measuring element is only under load while force is being applied
• No need for manual reset to zero.
• All the sensitive components are protected by a sturdy housing.
• The 2-component handle with its ergonomically designed green softer layers is resistant to oils, grease, fuels, brake fluids and Skydrol.
• If the wrench is misused e.g. to force seized-up screws the measuring mechanism is deactivated.
• The swap-over inserts can also be used to apply torque in an anticlockwise direction.
• Easily adjustable without disassembly, e.g. using testers No-798, No-799 or No-7707 W.
• Guaranteed maximum accuracy deviation ± 3%. With certificate.

Benefits at a glance:

• Accurate one-handed setting quick & easy control using the knob at the end of the handle
• Audible setting positions
• Fail-safe setting mechanism in the knob
• Clearly readable twin scale (N m and ft.lb)
• Noticeable double signals when the preset torque is reached
• Square drives with
• Handle is resistant to oils, grease, fuels, brake fluids and Skydrol
• Deviation of indication ± 3%
