***Special Order. Lead time is 150 days from the date of order. Please contact AIMS for further assistance.***

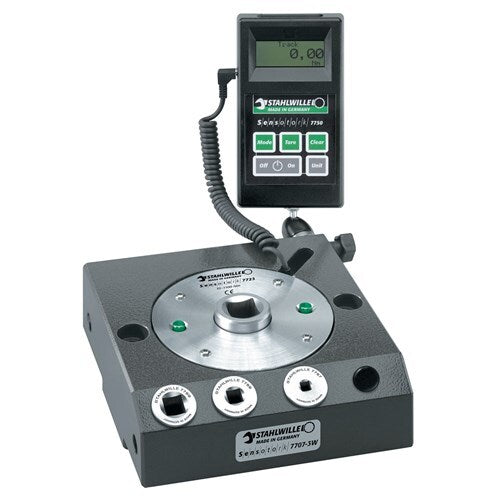

Electronic Torque Tester for Torque Wrenches Sensotork 7707 W

• Compact workshop-based torque tester for easy adaptation by replacement of the transducers.
• High degree of accuracy (from 20-100 % of the rated value ± 0.25 % display deviation from actual measured value, up to 20 % of rated value ± 1 %)
• Flat transducer does the conversion and digitalisation of readings.
• High degree of safety through display showing actual torque read-off where clicking torque wrenches are used.

7707 W Workshop Torque Tester Sensotork Electronic Workshop torque wrenches includes:

• Transducer (registered design)
• Holder
• Display unit (registered design)
• Tripod for display unit (with 1.5 m cable)
• Spiral cable
• Mains adaptor (220 V) or direct connection to 12 V in-car supply is possible
• Square drive adaptor (No-7707-2W, No-7707-3W)
• Kit for attaching the unit to a workbench or wall in a horizontal or vertical testing position for clockwise and anticlockwise use.

Other Features:

• The easily interchangeable transducers are attached to the holder by means of a QuickRelease safety lock.
• Low lateral forces due to low-profile transducers
• Automatic detection of the transducer
• Flexible and user-friendly because the unit can be used horizontally or vertically and the display unit can be placed in many positions
• Additional tripod with 1.5 m cable for mounting the display unit to facilitate visual monitoring when using longer torque wrenches, especially broad measuring range from 2% to 100% of rated value (< 1% at 1100 N m).
• Readings can be transferred to PC via the USB cable (no separate power supply needed, power comes from PC).
• While individual transducers are being recalibrated, the torque tester itself remains on-site for further use.
• Wide range of application (-20°C to +60°C).
• Meets DIN 51309, Class 2.
• With works certificate in accordance with DIN EN 10204.
• Supplied in a sturdy plastic case.
