***Special Order. Lead time is 150 days from the date of order. Please contact AIMS for further assistance.***

Stahlwille Electronic Torque Wrench

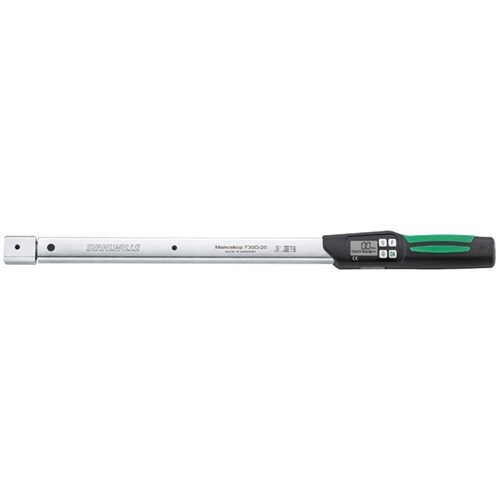

About Manoskop 730D Electromechanical Torque Wrench

Benefits at a glance:

• Cut-out and indicating function
• Displays the torque actually applied after the wrench cuts out. In this way, the user has the opportunity to optimise his or her working methods
• Units of measurement: N m / ft.lb / in.l
• Automatic keypad lock
• Display also works for anticlockwise torque
• Angle-controlled measurement without a reference arm using a supplementary module
• Overload protection by means of acoustic and visual signals
• Automatic compensation to achieve correct tightening torque even if a changed extension is entered
• Different tolerance limits can be set for each joint
• Visual red and green signals in the display confirm the status of the joint
• Additional security for presets using PIN code
• Automatic notification of the next calibration date
• Deviation of indication ± 2%

Measure, Cut-out and Record:

• When the preset torque is reached, the torque wrench cuts out and indicates this fact to the user via a definite tactile and audible signal.
• The tightening torques are stored.
• The data can be transferred to a PC for evaluation and documentation.

Service Work & Series Production Manoskop 730D Additional Features:

• This electromechanical torque wrench combines the "indicating" and "cut-out" functions in a single tool.
• The function modes can be selected independently of each other.
• With a mount for interchangeable sockets, inserts and Quick Release safety lock;
• Rapid setting using the convenient foil keypad and large display;
• tactile and acoustic trigger signal.
• Differing tolerance limits can be set for each joint.
• Visual red and green signals in the display confirm the status of the joint.
• 7500 data records can be stored, transferred via a USB interface and evaluated on the PC.
• The automatic keypad lock prevents inadvertent changes.
• Additional security for presets (function mode, trigger or preset value, unit of measurement, tolerance, save, deviating extension) using PIN code.
• All the sensitive components are protected by a sturdy housing.
• The 2-component handle with its ergonomically designed green softer layers is resistant to oils, grease, fuels, brake fluid and Skydrol.
• Included in the set are 2 AA NiMH rechargeable batteries, 1.2 V, 2300 mAh. It is also possible to use 1.5 V AA batteries.
• Automatic notification of the next calibration date. Simple calibration and, if required, adjustment without disassembly using Torque Tester No 7707 W.
• Units of measurement: N m, ft.lb in.lb
• Guaranteed maximum accuracy deviation +2%.
