**Bush is not included and needs to be purchased separately.**

Features of Cast Iron Taper Lock V-Pulleys

  • Suitable for SPB & B Section Belts
  • Choose from 1, 2, 3, 4, 5, 6, 8 or 10 Grooves
  • Wide range of sizes available
  • Quality V-belt pulleys
  • Constructed from cast iron
  • Taper locked to accommodate a range of shaft sizes
  • Each pulley design has undergone stringent balancing tests to ensure optimal efficiency.
  • Finished in black coating which acts as a primer to help protect the pulleys from environmental factors.

Specifications

  • AIMS SKU A0060308
  • PC Diameter (mm) 500
  • Number of Grooves 4
  • Suits Taper Lock Series 3535
  • Max Diameter Taper Lock Bush (mm) 90
  • Type Taper Lock V Pulley
  • System of Measurement Metric
  • Material Cast Iron
  • Section B,SPB
SKU: A0060308

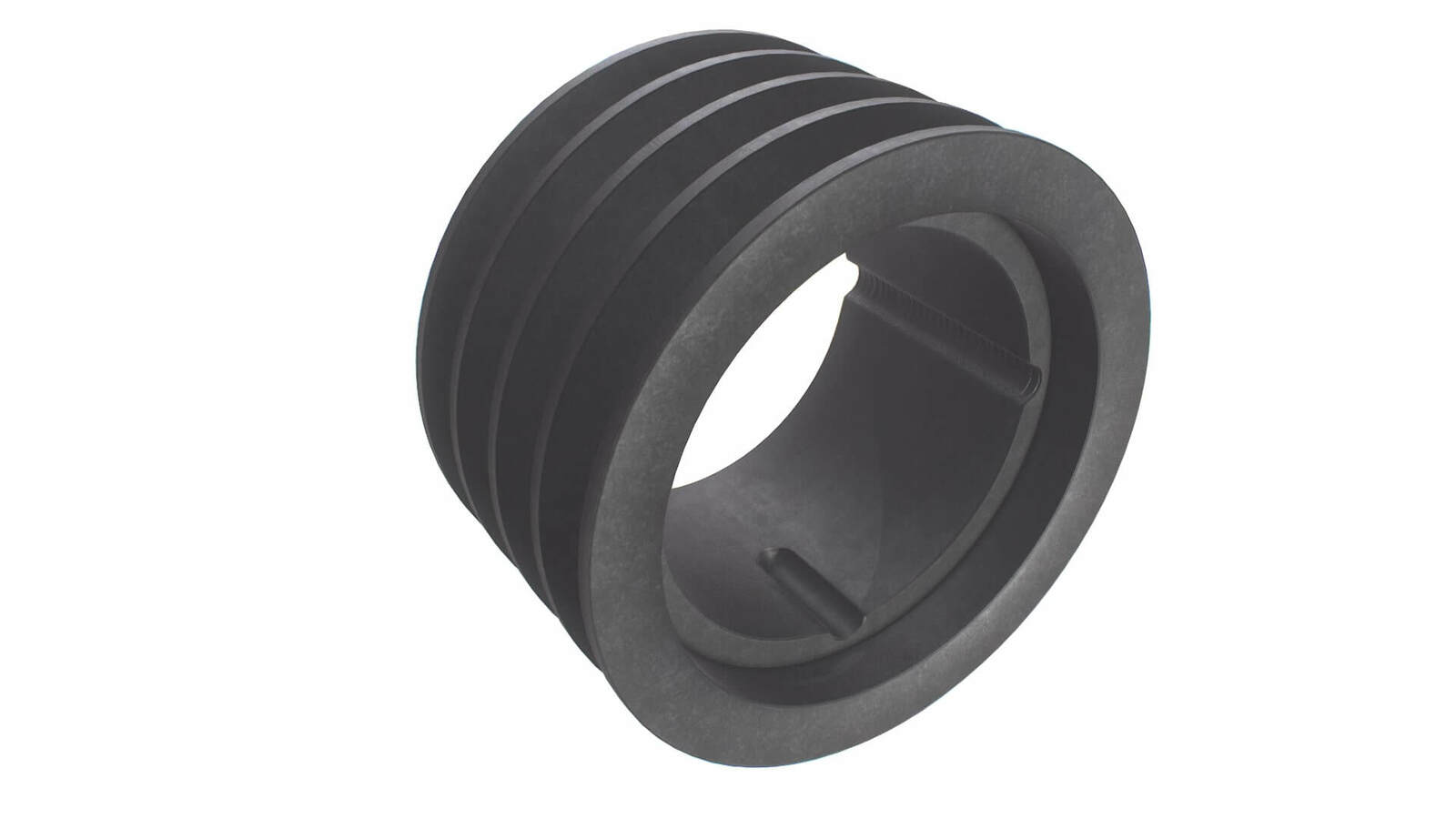

SPB Taper Lock V Pulley (3535) 500mm, 4 Groove Cast Iron SPB500-4

Suits SPB & B Section Belts, 3535 Taper Lock

$320.94
