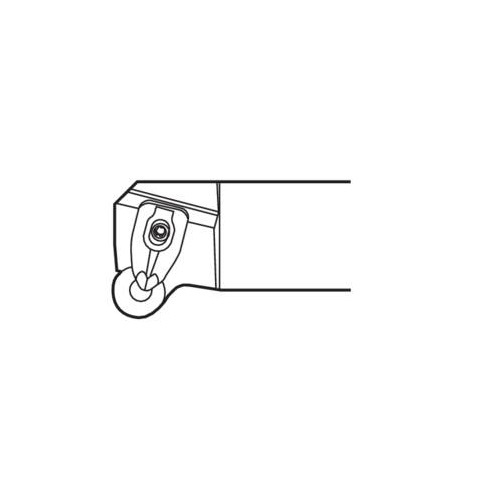

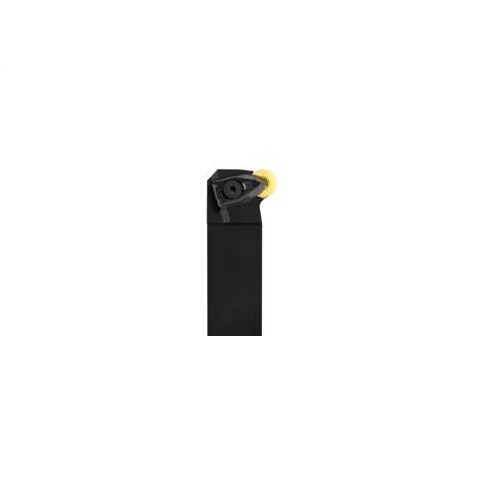

Seco Turning External Toolholder Top Clamp 152.4 x 31.8 x 4mm Left 27.5° R Insert Shape DRGNL-16-4D

Turning External Toolholder (Top Clamp - G Type - R Insert Shape)

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114943

Brand Seco

Model Number 02565516

Barcode Number 65516025000101

Net Weight (kg) 0.82

Type Turning Toolholder

Designation DRGNL-16-4D

Shank Length (LS) mm 122.4

Connection Text Workpiece Side (ctws) RN1204

Direction Of Cutting (hand) Left

Rake Angle Orthogonal (gamo) -6.0 deg

Ramping Angle Maximum (RPMX) 0.0 deg

Inclination Angle (LAMS) -6.0 deg

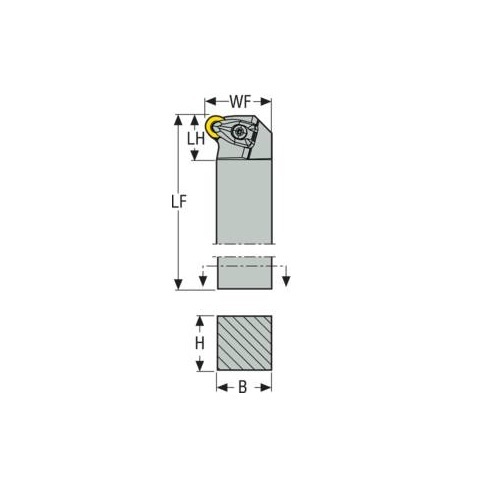

Functional Length (LF) 152.4mm

Height Of Tool Holder Shank (H) mm 25.4

Shank Width (b) mm 25.4

Connection Text Machine Side (CTMS) 25.4

Shank Type Square shank

Insert Shape Code (SC) R

Functional Width (WF) mm 31.8

Tool Cutting Edge Angle Code (KAPRC) G

Insert Clamping System (ICS) Top Clamp

Tool Cutting Edge Angle (KAPR) 27.5 deg

Version (internal/external/both) External

Rake Angle Axial (gamp) -6.0 deg

Insert Size Inscribed Circle Diameter (mm) 4

Cutting Edge Length (mm) 4

Tool Type G Type
