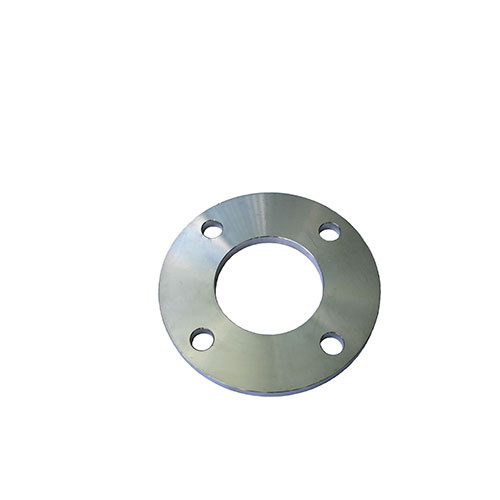

***Number of Holes may vary. The image is for illustration purposes only.***

AAP Slip On Flanges 316/316L SS 'Table E'

  • A Slip-On flange is used to connect two fillet welds.
  • Provide sufficient strength.
  • Prevents leakage.
  • Grade: 316 Stainless Steel.
  • Standard: BS10 Table E.
  • Pressure Rating: 13.87Bar.

Specifications

  • AIMS SKU A0080884
  • Brand AAP
  • Model Number SSFSE31665
  • Size 2 1/2"
  • Bolt Size M16
  • Number of holes 4
  • Hole Diameter 18
  • Approx Kg/pc 1.3

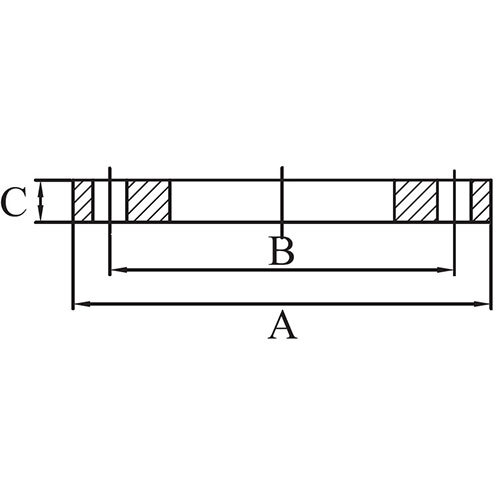

  • Dimension A (mm) 165
  • Dimension B (mm) 127
  • Dimension C (mm) 10.6
  • Size nb (mm) 64
  • Type Slip On Flange
  • Fitting Material 316 Stainless Steel
SKU: A0080884

AAP 2-1/2" Slip On Flanges 316/316L Stainless Steel - SSFSE31665

Slip On Flange - AAP

$84.62
