Specifications
- AIMS SKU A0112993
- Brand Seco
- Model Number 02641991
- Barcode Number 41991026001003

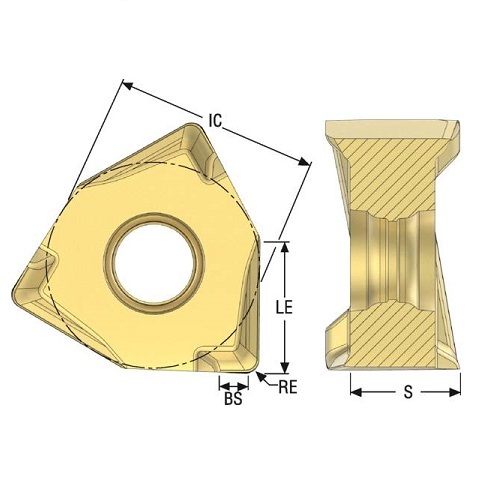

- Designation XNEX080616TR-M13 T350M
- Cutting Edge Effective Length (LE) mm 7.5
- Inscribed Circle Diameter (IC) 12.48
- Wiper Edge Length (BS) X Corner Radius (RE) mm 0.5 x 1.6
- Cutting Rake Deg 22°
- Theoretical Cutting Edge Length (L) 7.5
- Insert Included Angle (EPSR) 88.3 deg
- Insert Thickness (S) mm 6.45
- Insert Hand (IH) Right
- Cutting Edge Count (CEDC) 6
- Type Milling Cutter Insert
- Grade Type Carbide CVD
SKU: A0112993

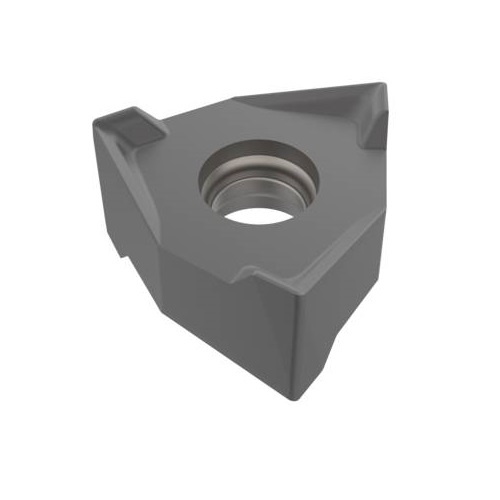

Seco 0.5 x 1.6mm Square Shoulder Milling Cutter Insert XNEX080616TR-M13,T350M 10 Pcs
T350M Square 6 Shoulder Milling Cutter Carbide Insert
$429.96
