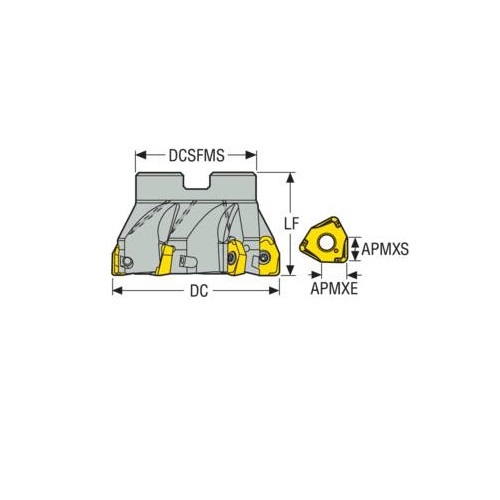

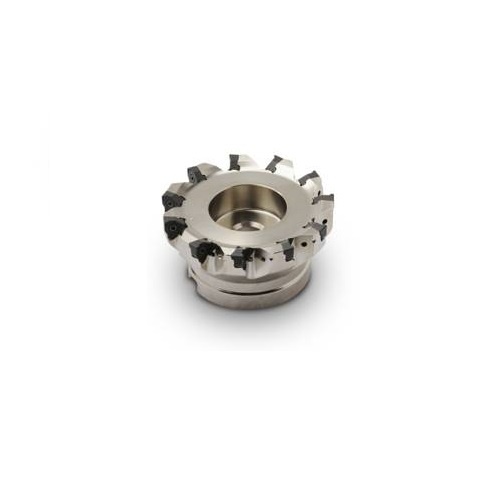

Square 6 Shoulder Arbor Milling Cutter (With Through Coolant Supply)

• Square 6, 6-cutting edge double sided inserts.
• Cutter range 40-315 mm (1.25-12 inch).
• Max depth of cut 7 mm (0.276 inch).
• Recommended slotting depth of cut 4 mm (0.157 inch).
• Insert corner radii range 0.4-0.8 mm (0.016-0.031 inch).

All About Square 6 - 6-Cutting-Edge Double-Sided Inserts:

• Seco’s line of square 6 shoulder milling cutters answers the need for added economy in square shoulder milling.
• This unique square shoulder milling cutter uses trigonal inserts with three cutting edges on each side – six total cutting edges – to lower the cost per cutting edge.
• Inserts lock into place via a strong center screw placed in the same direction as cutting forces, and wiper flats optimize surface finishes.
• The 90° setting angle ensures a true 90° square in one milling operation, eliminating the need for secondary operations and saving valuable production time and money.
• With two different cutter family sizes – Square 6 -04 and Square 6 -08 – each having multiple options in insert geometries and pitch.
• Square 6 offers superior performance in a wide range of materials, operations and machining conditions.
• Square 6 -08 is the larger insert version for higher depths in more demanding applications.
• The smallest diameter in this range is 1.5"" up to 6.0" with a maximum depth of cut of 0.295"
• Square 6 -08 is the perfect choice for larger machines in applications requiring maximum security.
• Multiple grades and geometries are available to provide peak performance in a variety of workpiece materials.
• Square 6 offers a nickel-coated, pre-hardened cutter body, which maximizes the life of the cutter body and provides minimal insert runout.
• The Square 6 -04 effectively tackles a wide range of materials, operations and machining conditions.
• But from cutting diameters that range from 0.75" to 2.5", with a maximum cutting depth of 0.157".
• Square 6 -04 is a reliable, cost-effective, first-choice solution for all general machining requirements.
• Square 6 -04 is a reliable square shoulder milling, face milling, slotting, plunging and slotting by plunging.
• Square 6 offers a nickel-coated, pre-hardened cutter body, which maximizes the life of the cutter body and provides minimal insert runout.
• Two different pitch configurations on the cutter body reduce vibrations, improve surface finish and increase component quality.
• For increased versatility, mounting types include Cylindrical, Weldon, Arbor and Combimaster™.
