Description

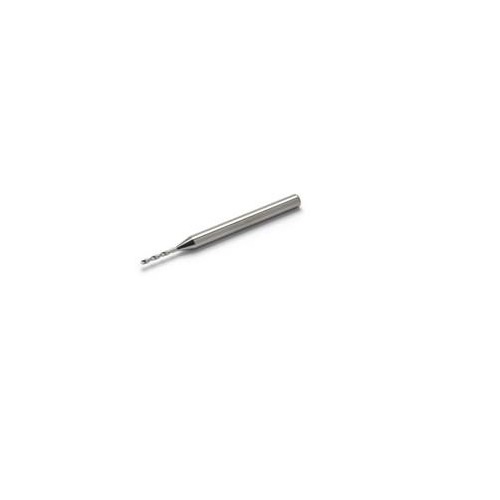

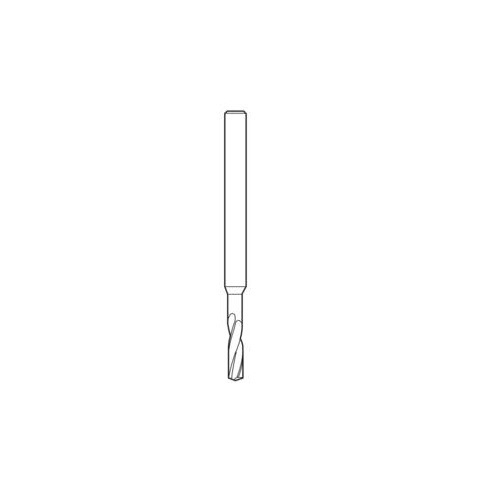

SD26 Solid Carbide Micro Drill Bit

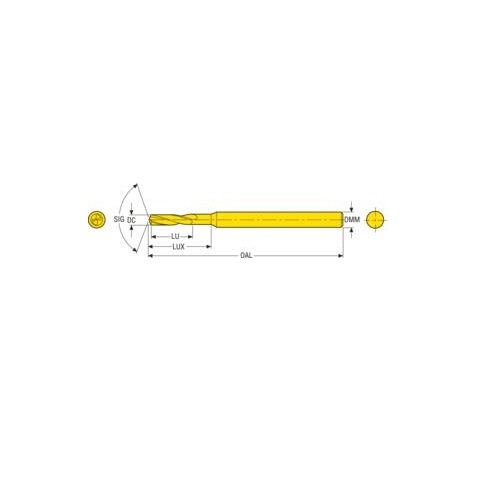

SD26 is a micro drill that can reach a drilling depth of up to 6xD with diameters in steps of 0.01 mm and a diameter tolerance of 0/+0.005 mm.
The shanks are 3 mm with an h6 tolerance.
SD26 drills are uncoated and have a 130-degree point angle.

About SD22 and SD26 Drills

SD22 and SD26 drills are capable of delivering dramatic performance increases compared to traditional HSS drills often used today.
These improvements include much higher productivity, significantly increased tool life, higher hole quality and lower cost per component.
Diameter range 0.1 – 2 mm (.004 - .078 inch).
These families were designed specifically for applications in the automotive and medical industries, as well as for small part production in the general engineering industry.
