Description

Seco SD107 Crownloc™ Exchangeable Tip Drill 11.5 x 15.88 x 166.5mm SD107-12.00/12.49-90-0625R7



SD107 Crownloc™ Exchangeable Tip Drill

  • Internal coolant.
  • ISO9766 fits holders: Weldon 1835B, ISO 5414, DIN 60880.
  • Crownloc plus provides you with high productivity, excellent chip evacuation, flexibility and easy handling.
  • These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

About Crownloc™ Plus:

  • Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
  • Featuring a new geometry, coating and locking interface, Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
  • Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.
  • The drill’s crowns have a new optimized geometry for improved chip formation and enhanced entering capability.
  • The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micrograin substrate serve to increase toughness and wear resistance, while reducing the potential for edge build up.
  • The first choice for general applications, the P geometry is a strong and versatile solution that provides reliable operation in applications across a range of different workpiece materials.
  • Utilizing a free cutting drill point to minimize heat generation, the M geometry provides excellent performance in high temperature alloys, titanium, titanium alloys and stainless steel.

Specifications

  • AIMS SKU A0113980
  • Brand Seco
  • Model Number 02517867
  • Barcode Number 17867025000107
  • Net Weight (kg) 0.685
  • Designation SD107-24.00/25.99-175-25R7
  • Functional Length Secondary (LFS) mm 208.5
  • Cutting Diameter Minimum (DCN) mm 24
  • Usable Length (LU) mm 175
  • Overall Length (OL) mm 264.5
  • Flange Diameter (DF) mm 31
  • Body Diameter (BD) X Shank Diameter (DMM) mm 23.5 x 25
  • Shank Length (LS) mm 56
  • Cutting Diameter Maximum (dcx) 26
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Usable Length Maximum (LUX) mm 188.5
  • Type SD107 Exchangeable Tip Drill
  • Shank Type ISO 9766
SKU: A0113980

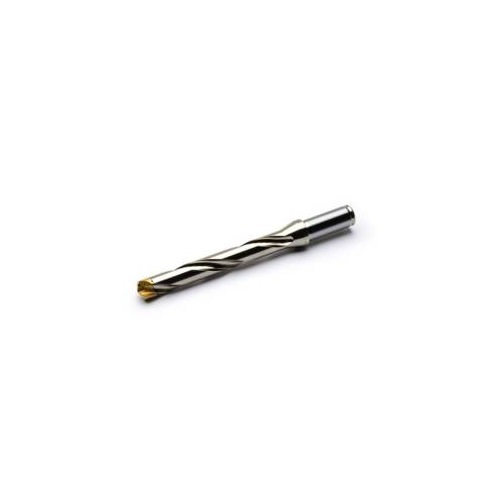

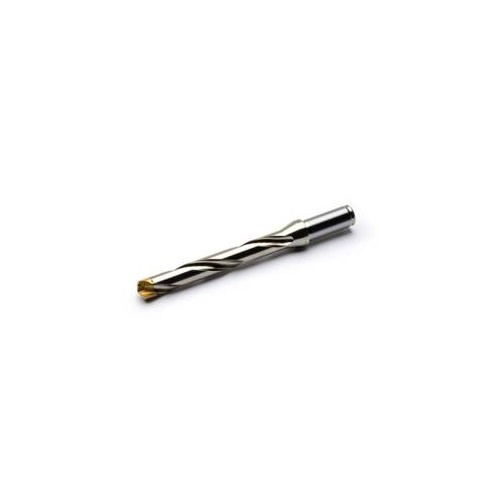

Seco SD107 Crownloc™ Exchangeable Tip Drill 23.5 x 25 x 264.5mm SD107-24.00/25.99-175-25R7

SD107 Crownloc™ Exchangeable Tip Drill

$1,105.86
RRP $1,276.00
SAVE $170.14 (13%)
