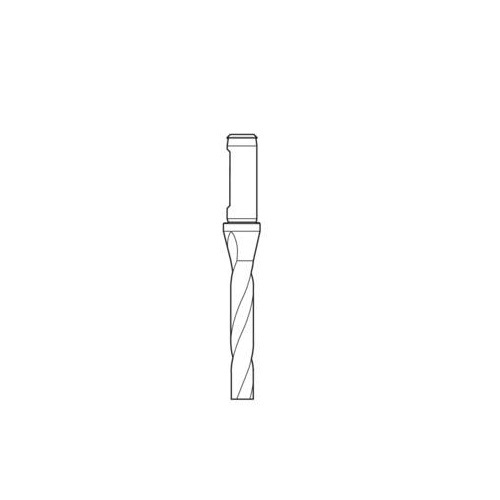

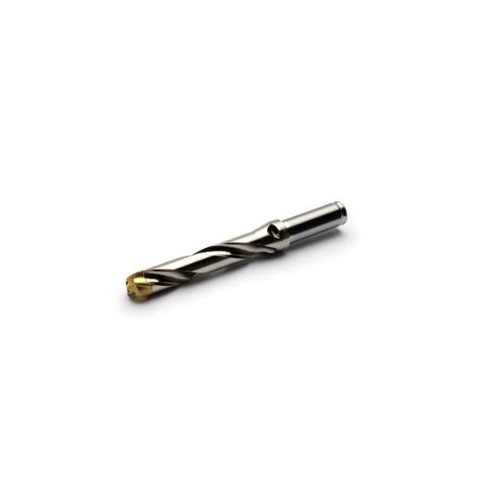

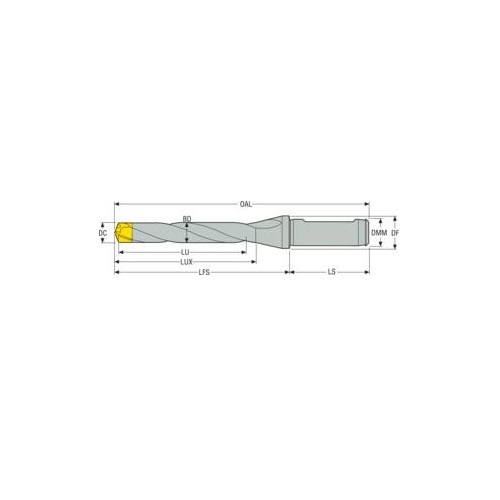

Seco SD105 Crownloc™ Exchangeable Tip Drill 9.5 x 15.88 x 120.1mm SD105-10.00/10.49-50-0625R7

SD105 Crownloc™ Exchangeable Tip Drill

• Internal coolant.
• ISO9766 fits holders: Weldon 1835B, ISO 5414, DIN 60880.
• Crownloc plus provides you with high productivity, excellent chip evacuation, flexibility and easy handling.
• These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

About Crownloc™ Plus:

• Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
• Featuring a new geometry, coating and locking interface, Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
• Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.
• The drill’s crowns have a new optimized geometry for improved chip formation and enhanced entering capability.
• The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micrograin substrate serve to increase toughness and wear resistance, while reducing the potential for edge build up.
• The first choice for general applications, the P geometry is a strong and versatile solution that provides reliable operation in applications across a range of different workpiece materials.
• Utilizing a free cutting drill point to minimize heat generation, the M geometry provides excellent performance in high temperature alloys, titanium, titanium alloys and stainless steel.
