Description
Specifications
- AIMS SKU A0121471
- Brand Seco
- Model Number 02206248
- Barcode Number 6248022000200
- Type Snap-Tap® Thread Turning Insert
- Designation 27ER3H90,CP500
- Tooth Count (NT) 1
- Thread Type (TTP) External
- Inscribed Circle Diameter (IC) mm 15.88
- Insert Hand (IH) Right
- Taper Gradient Taper Per Foot (TPF) 1.25
- Profile Distance Ey (PDY) mm 3.5
- Threads Per Inch Maximum (TPIX) 3
- Insert Seat Size Code (SSC) 27
- Cutting Edge Count (CEDC) 3
- Thread Tolerance Class (TCTR) API spec 7 2007
- Profile Distance Ex (PDX) mm 3.6
- Threads Per Inch Minimum (TPIN) 3
- Theoretical Cutting Edge Length (L) mm 27
- Insert Thickness (S) mm 6.15
- Grade CP200

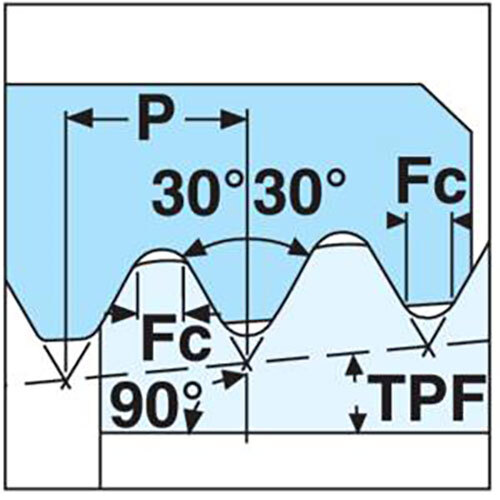

- Profile Included Angle (PNA) deg 90.0 deg
SKU: A0121471

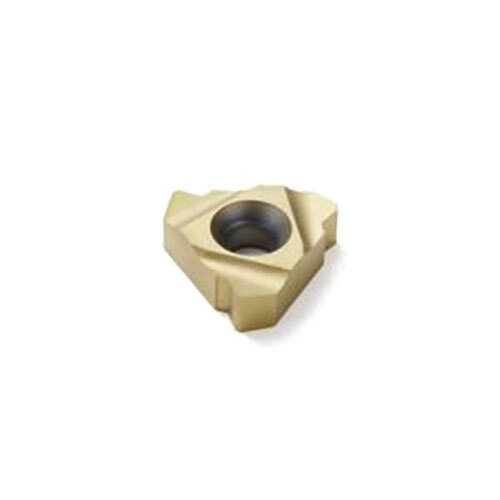

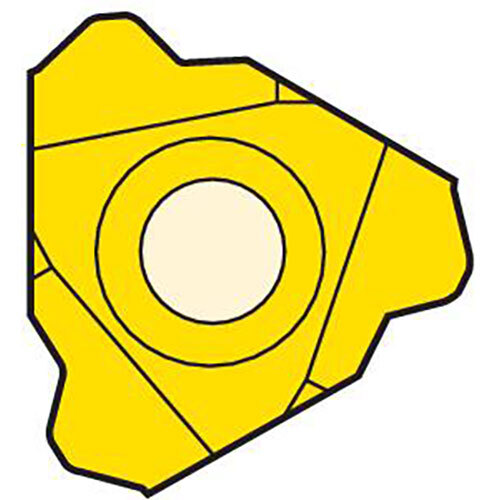

Seco External Snap-Tap® Thread Turning Insert 6.15 x 27mm Right 3-3 TPI CP500 H90 Thread 27ER3H90,CP500 Pack of 2
Thread Turning Insert 27ER - H90 Thread Grade-CP500
$242.14
